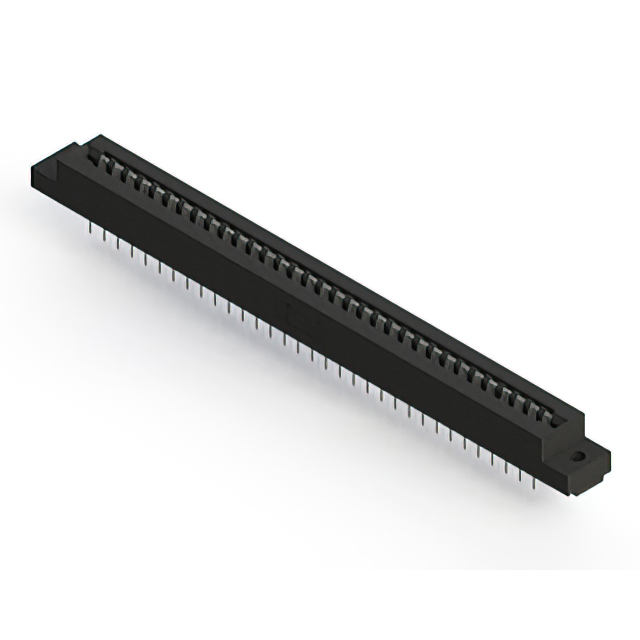

857-066-424-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-066-424-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-066-424-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-066 Series

...

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Gender	Number of Positions/Bay/Row [custom]	Termination Rows	Contact Material	Termination	Material - Insulation	Number of Positions	Contact Type	Card Type	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Flange Feature
EDAC Inc. 857-066-458-201	Black	125 °C	-40 °C	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Through Hole Right Angle	0.156 in	3.96 mm
EDAC Inc. 857-066-442-204	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Wire Wrap	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Through Hole	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 857-066-422-208	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Through Hole	0.156 in	3.96 mm		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-066-542-207	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Wire Wrap	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Gold	Through Hole	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám
EDAC Inc. 857-066-424-202	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Through Hole	0.156 in	3.96 mm	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 857-066-555-202	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	0.156 in	3.96 mm	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	Card Extender
EDAC Inc. 857-066-455-204	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Board Edge Straddle Mount	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in			Card Extender
EDAC Inc. 857-066-424-204	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Through Hole	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 857-066-400-207	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder Eyelet(s)	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Through Hole	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-066-456-212	Black	125 °C	-40 °C	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	33	2	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	66	Semi Bellows	Non Specified - Dual Edge	Tin	Board Edge Straddle Mount	0.156 in	3.96 mm		Side Mount Opening Unthreaded				Card Extender	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 102.16
Newark	Each	1	$ 122.59
		100	$ 70.36
		250	$ 62.45
		500	$ 53.59
		1000	$ 40.75

Description

General part information

857-066 Series

66 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
