ZXBM1021JB20TC
ObsoleteDiodes Inc
IC MOTOR CTRLR PAR U-QFN4040-20
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZXBM1021JB20TC
ObsoleteDiodes Inc
IC MOTOR CTRLR PAR U-QFN4040-20
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXBM1021JB20TC |
|---|---|
| Applications | Fan Controller |
| Function | Controller - Commutation, Direction Management |
| Interface | PWM |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Pre-Driver - Half Bridge (2) |

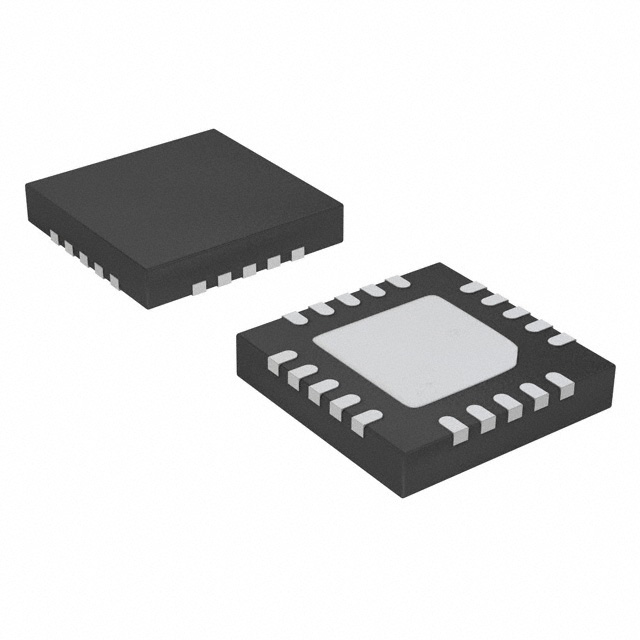

| Package / Case | 20-UFQFN Exposed Pad |
| Supplier Device Package | U-QFN4040-20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.68 | |
| 6000 | $ 0.64 | |||
| 9000 | $ 0.62 | |||
| 15000 | $ 0.60 | |||
Description
General part information
ZXBM1021 Series
Motor Driver PWM U-QFN4040-20
