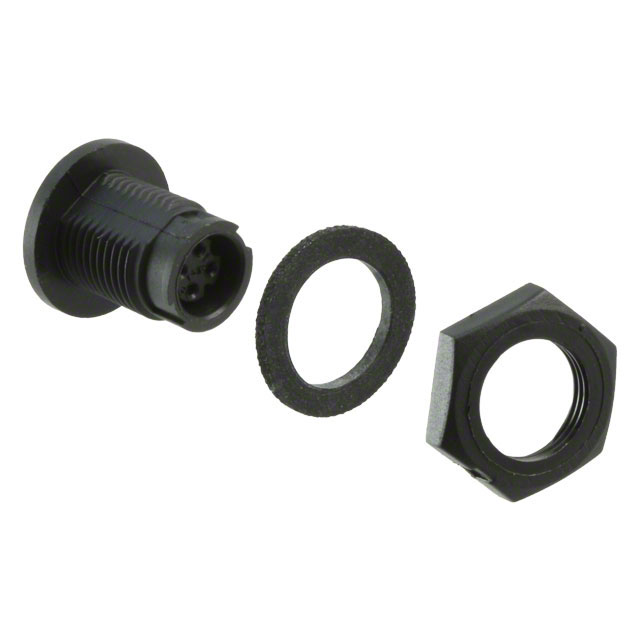

17882-4SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17882-4SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 17882-4SG-300 | 17882-4S Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 6 A | 6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
17882-4S Series
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Applications | Shielding | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Current Rating (Amps) | Orientation | Connector Type | Voltage Rating | Ingress Protection | Color | Number of Positions | Material Flammability Rating | Primary Material | Contact Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 17882-4SG-3ES | Data, Industrial, Instrumentation, Medical | Unshielded | Gold | 85 °C | -40 °C | Bulkhead - Front Side Nut | 6 A | Keyed | Receptacle, Female Sockets | 600 VAC | IP67 - Dust Tight, Waterproof | Black | 4 | UL94 HB | Plastic | Copper Alloy | Bayonet Lock |
Conxall/Switchcraft 17882-4SG-300 | Data, Industrial, Instrumentation, Medical | Unshielded | Gold | 85 °C | -40 °C | Bulkhead - Front Side Nut | 6 A | Keyed | Receptacle, Female Sockets | 600 VAC | IP67 - Dust Tight, Waterproof | Black | 4 | UL94 HB | Plastic | Copper Alloy | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.20 | |
| 10 | $ 9.93 | |||
| 25 | $ 9.54 | |||
| 50 | $ 9.16 | |||
| 100 | $ 8.65 | |||
| 250 | $ 7.89 | |||
| 500 | $ 7.38 | |||
| 1000 | $ 6.77 | |||
Description
General part information
17882-4S Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
