17882-4SG-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	17882-4SG-3ES	17882-4S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6 A	6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Applications	Shielding	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Current Rating (Amps)	Orientation	Connector Type	Voltage Rating	Ingress Protection	Color	Number of Positions	Material Flammability Rating	Primary Material	Contact Material	Fastening Type
Conxall/Switchcraft 17882-4SG-3ES	Data, Industrial, Instrumentation, Medical	Unshielded	Gold	85 °C	-40 °C	Bulkhead - Front Side Nut	6 A	Keyed	Receptacle, Female Sockets	600 VAC	IP67 - Dust Tight, Waterproof	Black	4	UL94 HB	Plastic	Copper Alloy	Bayonet Lock
Conxall/Switchcraft 17882-4SG-300	Data, Industrial, Instrumentation, Medical	Unshielded	Gold	85 °C	-40 °C	Bulkhead - Front Side Nut	6 A	Keyed	Receptacle, Female Sockets	600 VAC	IP67 - Dust Tight, Waterproof	Black	4	UL94 HB	Plastic	Copper Alloy	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

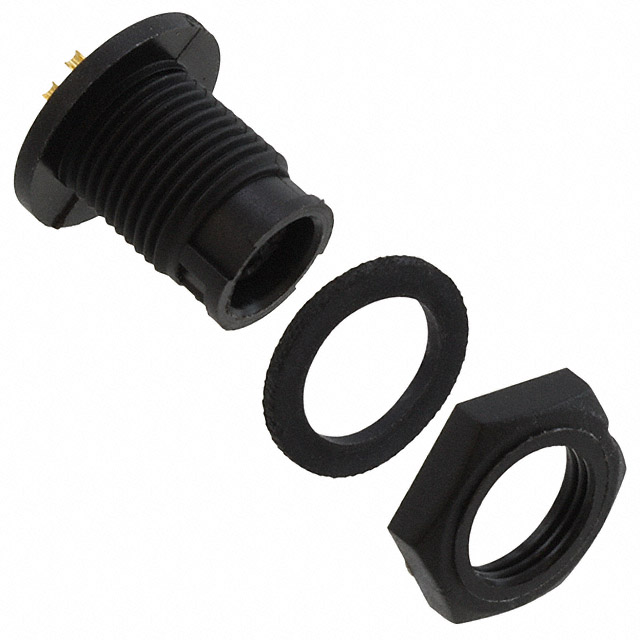

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
