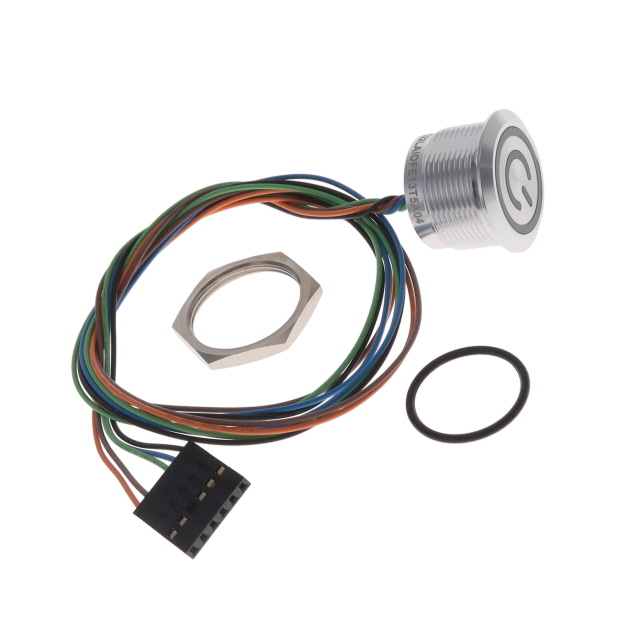

AVC22LAIOFE13T5A04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST 1A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST 1A

Technical Specifications

Parameters and characteristics for this part

Specification	AVC22LAIOFE13T5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	50000000 Cycles
Illumination Type, Color [custom]	Blue/Green
Illumination Type, Color [custom]	LED
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	Off-On
Type	Illuminated, Anti-Vandal, Capacitive
Voltage Rating - DC	24 V

Part	Actuator Marking	Type	Actuator Type	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Ingress Protection	Mounting Type	Color - Actuator/Cap	Illumination Type, Color	Voltage Rating - DC	Mechanical Life	Illumination Type, Color [custom]	Illumination Type, Color [custom]
TE Connectivity Raychem Cable Protection AVC22LAIOFE1DT5A04	No Marking	Anti-Vandal Capacitive Illuminated	Button Flush Round	1 A	Off-On	22.2 mm	SPST	50000000 Cycles	IP68 - Dust Tight Waterproof	Panel Mount Front	Silver	Blue Green LED Red	24 V	50000000 Cycles
TE Connectivity Raychem Cable Protection AVC22LS04FE1DT5A04	No Marking	Anti-Vandal Capacitive Illuminated	Button Flush Round	1 A	Off-On	22.2 mm	SPST	50000000 Cycles	IP68 - Dust Tight Waterproof	Panel Mount Front	Silver	Blue Green LED Red	24 V	50000000 Cycles
TE Connectivity Raychem Cable Protection AVC22MS04FE0DT5A04	No Marking	Anti-Vandal Capacitive Illuminated	Button Flush Round	1 A	Off-Mom	22.2 mm	SPST-NO	50000000 Cycles	IP68 - Dust Tight Waterproof	Panel Mount Front	Silver	Blue Green LED Red	24 V	50000000 Cycles
TE Connectivity Raychem Cable Protection AVC22LAIOFE13T5A04	No Marking	Anti-Vandal Capacitive Illuminated	Button Flush Round	1 A	Off-On	22.2 mm	SPST	50000000 Cycles	IP68 - Dust Tight Waterproof	Panel Mount Front	Silver		24 V	50000000 Cycles	Blue/Green	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
