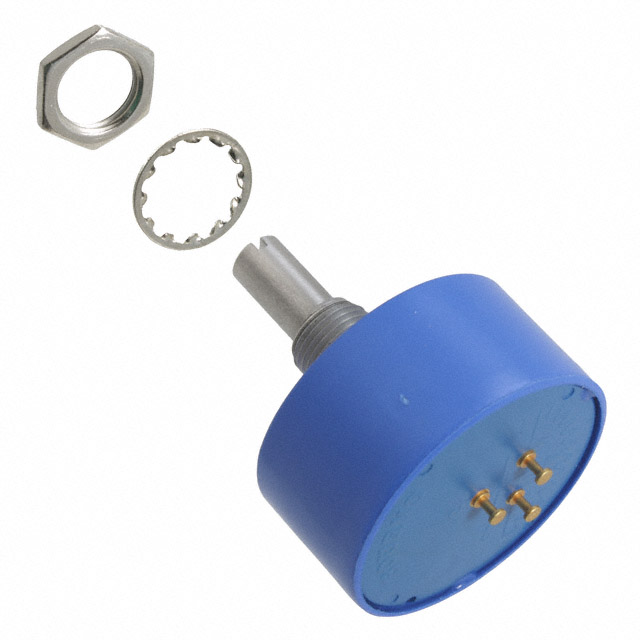

6657S-1-203
ActiveBourns Inc.
RES,CONDUCTIVE PLASTIC,20KOHMS,10+/-% TOL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6657S-1-203
ActiveBourns Inc.
RES,CONDUCTIVE PLASTIC,20KOHMS,10+/-% TOL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6657S-1-203 |
|---|---|
| Actuator Diameter [diameter] | 6.34 mm |
| Actuator Diameter [diameter] | 0.2497 in |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 1.5 W |
| Resistance (Ohms) | 20 kOhms |
| Resistive Material | Conductive Plastic |
| Rotation | Continuous |
| Size - Body [diameter] | 1.313 in |
| Size - Body [diameter] | 33.34 mm |
| Taper | Linear |
| Temperature Coefficient | 500 ppm/°C |
| Termination Style | Solder Turret |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
6657S Series
20k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 1.5W Solder Turret
