JWL12RAA/UCV

Active

NKK Switches

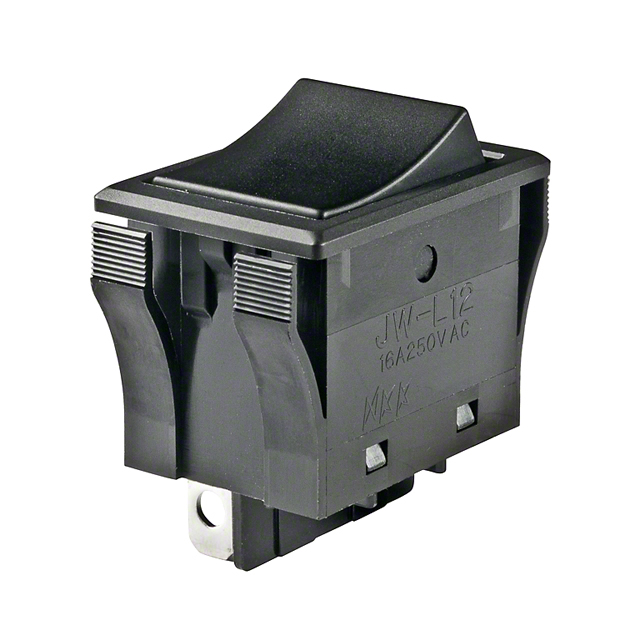

SWITCH ROCKER SPDT 16A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER SPDT 16A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Mechanical Life	Mounting Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Switch Function	Termination Style	Termination Style	Approval Agency	Features	Electrical Life	Circuit	Ingress Protection	Termination Style
NKK Switches JWL12RCA/U	16 A	Concave (Curved)	125 V	25000 Steps	Panel Mount Snap-In	No Marking	70 °C	-25 °C	29.5 mm	20.5 mm	Red	On-On	Quick Connect Solder	0.187 in 4.7 mm	CSA UL VDE	Epoxy Sealed Terminals	25000 Steps	SPDT	Dust Proof
NKK Switches JWL12RAA/U	16 A	Concave (Curved)	125 V	25000 Steps	Panel Mount Snap-In	No Marking	70 °C	-25 °C	29.5 mm	20.5 mm	Black	On-On	Quick Connect Solder	0.187 in 4.7 mm	CSA UL VDE	Epoxy Sealed Terminals	25000 Steps	SPDT	Dust Proof
NKK Switches JWL12RAA	16 A	Concave (Curved)	125 V	25000 Steps	Panel Mount Snap-In	No Marking	70 °C	-25 °C	29.5 mm	20.5 mm	Black	On-On	Quick Connect Solder	0.187 in 4.7 mm	CSA UL VDE	Epoxy Sealed Terminals	25000 Steps	SPDT	Dust Proof
NKK Switches JWL12RAA/UCV	16 A	Concave (Curved)	125 V	25000 Steps	Panel Mount Snap-In	No Marking	70 °C	-25 °C	29.5 mm	20.5 mm	Black	On-On	Quick Connect Solder	0.187 in 4.7 mm	CSA UL VDE	Epoxy Sealed Terminals	25000 Steps	SPDT	Dust Proof
NKK Switches JWL12RHA	16 A	Concave (Curved)	125 V	25000 Steps	Panel Mount Snap-In	No Marking	70 °C	-25 °C	29.5 mm	20.5 mm		On-On	Quick Connect Solder	0.11 in	CSA UL VDE		25000 Steps	SPDT		2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
