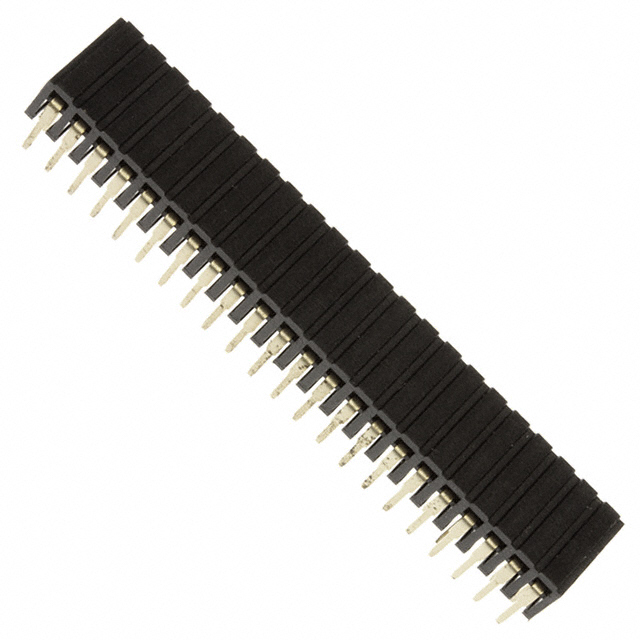

NPPN302FJFN-RC

Active

Sullins Connector Solutions

CONN HDR 60P 0.079 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

NPPN302FJFN-RC

Active

Sullins Connector Solutions

CONN HDR 60P 0.079 GOLD PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN302FJFN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.191 in
Insulation Height	4.85 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

NPPN302 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Contact Type	Contact Material	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Features	Contact Length - Post [x]
Sullins Connector Solutions NPPN302FFKS-RC	0.079 in	2 mm	60	Gold	Push-Pull	Gold	Female Socket	Phosphor Bronze	2	Nylon 6T Polyamide (PA6T)	Flash	0.079 in	2 mm	UL94 V-0	All	2 A	0.173 in	4.4 mm	Header	Square	-40 °C	105 ░C	Black	Solder	Surface Mount	Flash
Sullins Connector Solutions NPPN302GFNS-RC	0.079 in	2 mm	60	Gold	Push-Pull	Gold	Female Socket	Phosphor Bronze	2	Nylon 6T Polyamide (PA6T)	Flash	0.079 in	2 mm	UL94 V-0	All	2 A			Header Top or Bottom Entry	Square	-40 °C	105 ░C	Black	Solder	Surface Mount	Flash
Sullins Connector Solutions NPPN302FJFN-RC	0.079 in	2 mm	60	Gold	Push-Pull	Gold	Female Socket	Phosphor Bronze	2	Nylon 6T Polyamide (PA6T)	Flash	0.079 in	2 mm	UL94 V-0	All		0.191 in	4.85 mm	Header	Square	-40 °C	105 ░C	Black	Solder	Through Hole Right Angle	Flash	0.118 in	3 mm
Sullins Connector Solutions NPPN302AFCN-RC	0.079 in	2 mm	60	Gold	Push-Pull	Gold	Female Socket	Phosphor Bronze	2	Nylon 6T Polyamide (PA6T)	Flash	0.079 in	2 mm	UL94 V-0	All		0.169 "	4.3 mm	Header	Square	-40 °C	105 ░C	Black	Solder	Through Hole	Flash	0.094 in	2.4 mm
Sullins Connector Solutions NPPN302GHNP-RC	0.079 in	2 mm	60	Gold	Push-Pull	Gold	Female Socket	Phosphor Bronze	2	Nylon 6T Polyamide (PA6T)	Flash	0.079 in	2 mm	UL94 V-0	All				Header Bottom Entry	Square	-40 °C	105 ░C	Black	Solder	Surface Mount	Flash			Board Guide
Sullins Connector Solutions NPPN302AFEN-RC	0.079 in	2 mm	60	Gold	Push-Pull	Gold	Female Socket	Phosphor Bronze	2	Nylon 6T Polyamide (PA6T)	Flash	0.079 in	2 mm	UL94 V-0	All		0.169 "	4.3 mm	Header	Square	-40 °C	105 ░C	Black	Solder	Through Hole	Flash		2.79 mm		0.11 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 4.09

Description

General part information

NPPN302 Series

60 Position Header Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
