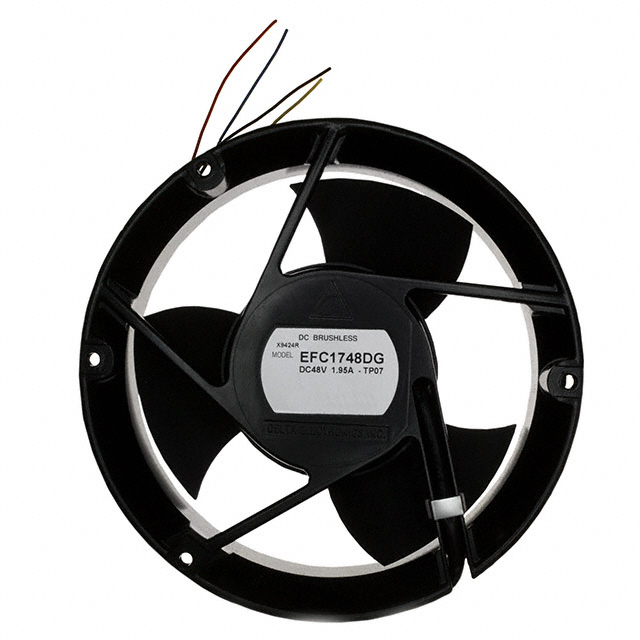

EFC1748DG-TP07

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	EFC1748DG-TP07

Air Flow	11.64 m³/min
Air Flow	415.7 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.23 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	63.4 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	59 W
RPM	5500 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	441.1 Pa
Static Pressure	1.771 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	53 VDC
Voltage Range [Min]	28 V
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

Part	Static Pressure	Static Pressure	Fan Type	Material - Frame	Lifetime @ Temp.	Features	Termination	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Width [y]	RPM	Current Rating (Amps)	Power (Watts)	Noise	Material - Blade	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated [custom]	Weight	Weight	Size / Dimension	Size / Dimension [diameter]	Air Flow	Air Flow
Delta Electronics EFC1748DG-TP07	441.1 Pa	1.771 in H2O	Tubeaxial	Aluminum	70000 Hrs	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	CE CSA UL VDE	28 V	53 VDC	2 "	5500 RPM	1.23 A	59 W	63.4 dB(A)	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	48 VDC	861.8 g	1.9 lbs	Round	172 mm	11.64 m³/min	415.7 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Round - 172mm Dia Ball 415.7 CFM (11.64m³/min) 4 Wire Leads
