112202RP

Active

Amphenol RF

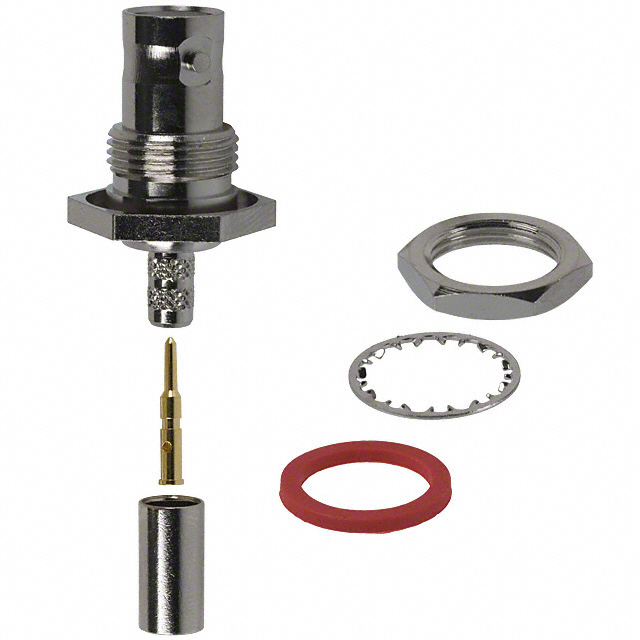

CONN RP-BNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-BNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	112202RP

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Connector Type	Mating Cycles	Fastening Type	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Insertion Loss	Number of Ports	Body Finish	Connector Style	Impedance	Includes	Dielectric Material	Voltage Rating	Housing Color	Mounting Feature	Body Material	Cable Group	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 112202RP	Crimp	Jack Male Pin	500	Bayonet Lock	4 GHz	Gold	Brass	0.2 dB	1	Nickel	RP-BNC	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	500 V	Silver	Bulkhead - Front Side Nut	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Crimp	-65 ░C	165 °C
