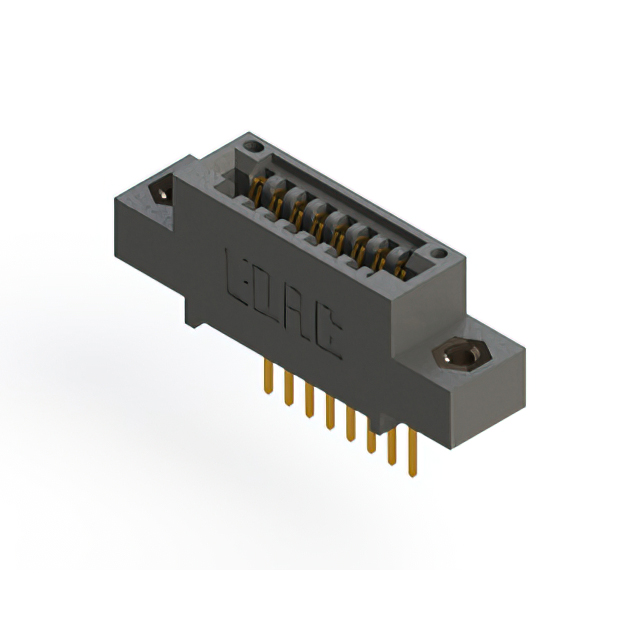

895-008-523-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-008-523-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-008-523-408 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-008 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Type | Pitch [x] | Pitch [x] | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination | Read Out | Material - Insulation | Number of Rows | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Gender | Card Type | Number of Positions | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole Right Angle | Female | Non Specified - Single Edge | 8 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole Right Angle | Female | Non Specified - Single Edge | 8 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Floating Bobbin Flush Mount | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Floating Bobbin Flush Mount | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 2.95 mm | 0.116 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 8 | 8 | 8 | Cantilever | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | 125 °C | -40 °C | Black | Solder | Single | Polyphenylene Sulfide (PPS) | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Through Hole | Female | Non Specified - Single Edge | 8 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
