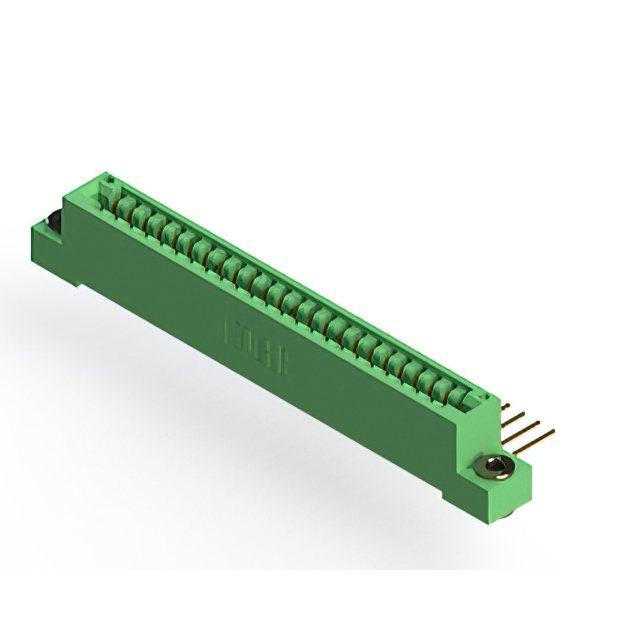

846-024-558-103

Active

EDAC Inc.

CONN EDGE SGL FMALE 24POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-024-558-103

Active

EDAC Inc.

CONN EDGE SGL FMALE 24POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-024-558-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions/Bay/Row [custom]	24
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-024 Series

...

Part	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Card Type	Pitch [x]	Pitch [x]	Number of Rows	Color	Contact Finish	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Material	Termination Rows	Read Out	Flange Feature	Flange Feature	Features
EDAC Inc. 846-024-541-204	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Green	Gold	Diallyl Phthalate (DAP)	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Cantilever	12	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	2	Dual
EDAC Inc. 846-024-522-612	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Non Specified - Single Edge	0.125 in	3.18 mm	1	Green	Gold	Diallyl Phthalate (DAP)		Side Mount Opening Unthreaded		Cantilever	24	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	1	Single	3.25 mm	0.128 in
EDAC Inc. 846-024-559-108	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Non Specified - Single Edge	0.125 in	3.18 mm	1	Green	Gold	Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	24	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	1	Single
EDAC Inc. 846-024-555-802	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Green	Gold	Diallyl Phthalate (DAP)				Cantilever	12	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	2	Dual	3.25 mm	0.128 in	Card Extender
EDAC Inc. 846-024-556-802	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Green	Gold	Diallyl Phthalate (DAP)				Cantilever	12	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	2	Dual	3.25 mm	0.128 in	Card Extender
EDAC Inc. 846-024-522-201	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Green	Gold	Diallyl Phthalate (DAP)				Cantilever	12	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	2	Dual
EDAC Inc. 846-024-522-604	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Non Specified - Single Edge	0.125 in	3.18 mm	1	Green	Gold	Diallyl Phthalate (DAP)	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Cantilever	24	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	1	Single
EDAC Inc. 846-024-541-807	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Green	Gold	Diallyl Phthalate (DAP)		M3 Threaded Insert Top Mount Opening		Cantilever	12	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	2	Dual
EDAC Inc. 846-024-558-103	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Non Specified - Single Edge	0.125 in	3.18 mm	1	Green	Gold	Diallyl Phthalate (DAP)	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Cantilever	24	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	1	Single
EDAC Inc. 846-024-500-201	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Non Specified - Dual Edge	0.125 in	3.18 mm	2	Green	Gold	Diallyl Phthalate (DAP)				Cantilever	12	10 Áin	0.25 Ám	24	125 °C	-40 °C	Female	Copper Alloy	2	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 73.13
Newark	Each	1	$ 84.41
		100	$ 70.36
		250	$ 64.50
		500	$ 59.86
		1000	$ 50.25

Description

General part information

846-024 Series

24 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
