3-1609037-8

Active

TE Connectivity Raychem Cable Protection

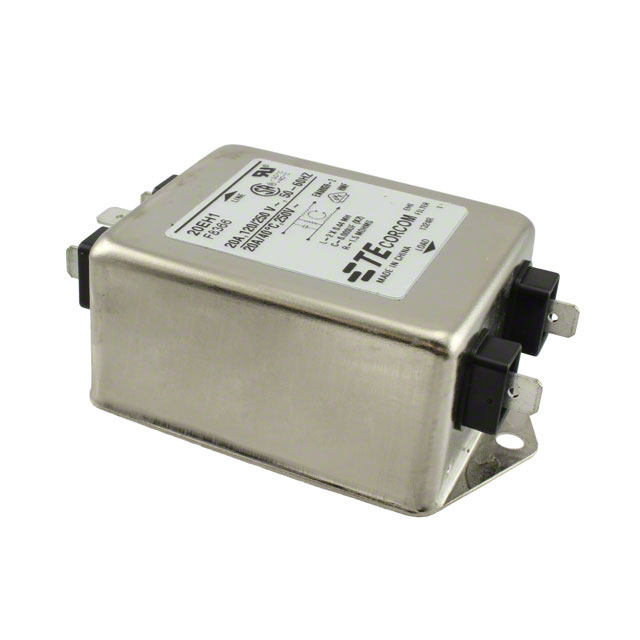

LINE FILTER 250VAC 20A CHASS MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

3-1609037-8

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 20A CHASS MNT

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-1609037-8

Applications	General Purpose
Approval Agency	UL, VDE
Configuration	Single Stage
Current	20 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	440 µH
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V

1609037 Series

Part	Applications	Termination Style	Current	Inductance	Voltage - Rated AC	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Configuration
TE Connectivity Raychem Cable Protection 2-1609037-9	General Purpose	Quick Connect	6 A	5.1 mH	250 V	Single Phase	60 Hz	50 Hz	CSA UR VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Raychem Cable Protection 3-1609037-2	General Purpose	Quick Connect	20 A	4.55 mH	250 V	Single Phase	60 Hz	50 Hz	CSA UR VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Raychem Cable Protection 3-1609037-3	General Purpose	Threaded Post (8-32)	30 A	900 µH	250 V	Single Phase	60 Hz	50 Hz	CSA UR VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Raychem Cable Protection 4-1609037-2	General Purpose	Quick Connect	20 A	6 mH	250 V	Single Phase	60 Hz	50 Hz	CSA UR VDE	Chassis Mount	-10 °C	40 °C	Two Stage
TE Connectivity Raychem Cable Protection 4-1609037-0	General Purpose	Quick Connect	20 A	2.88 mH	250 V	Single Phase	60 Hz	50 Hz	UR VDE	Chassis Mount	-10 °C	40 °C	Two Stage
TE Connectivity Raychem Cable Protection 3-1609037-8	General Purpose	Quick Connect	20 A	440 µH	250 V	Single Phase	60 Hz	50 Hz	UL VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Raychem Cable Protection 3-1609037-0	General Purpose	Quick Connect	10 A	4.97 mH	250 V	Single Phase	60 Hz	50 Hz	CSA UR VDE	Chassis Mount	-10 °C	40 °C	Single Stage
TE Connectivity Raychem Cable Protection 2-1609037-8	General Purpose	Quick Connect	4 A	7 mH	250 V	Single Phase	60 Hz	50 Hz	CSA UR VDE	Chassis Mount	-10 °C	40 °C	Single Stage
