CA #EV01AT-002-5M

Active

Adam Tech

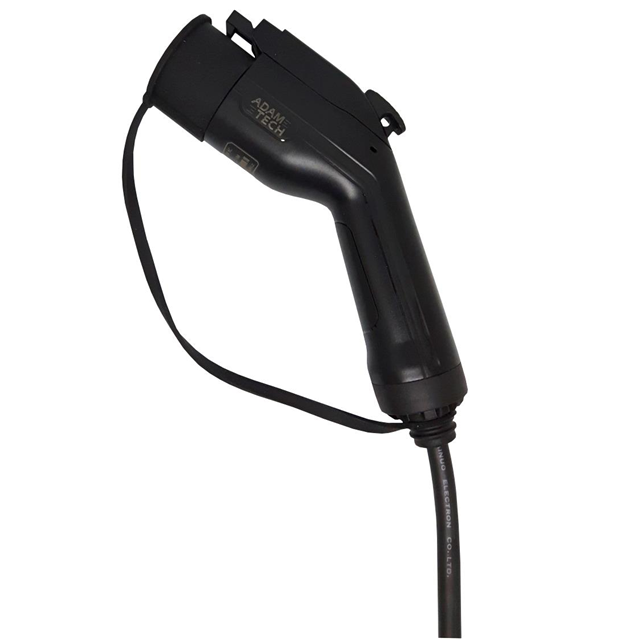

TYPE 1 FEMALE PLUG 5M 16A 1 PHAS

Search across all available documentation for this part.

Active

Adam Tech

TYPE 1 FEMALE PLUG 5M 16A 1 PHAS

Technical Specifications

Parameters and characteristics for this part

Specification	CA #EV01AT-002-5M

1st Connector	J1772
2nd Connector	3 Ring Terminals, 1 Ferrule
Color	Black
Current Rating (Amps)	16 A
Features	Charging, Electric Vehicles
Number of Conductors	3, 2
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Shielding	Unshielded
Style	Female Plug to Leads with Terminals
Voltage Rating	120 VAC
Wire Gauge	20 AWG, 13.5 AWG

Part	Current Rating (Amps)	Number of Conductors	Style	Color	Features	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Voltage Rating	Shielding	1st Connector
Adam Tech CA #EV01AT-002-5M	16 A	2 3	Female Plug to Leads with Terminals	Black	Charging Electric Vehicles	1 Ferrule 3 Ring Terminals	50 °C	-30 ░C	13.5 AWG 20 AWG	120 VAC	Unshielded	J1772

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16.40' (5.00m) Power Cord Black J1772 To 3 Ring Terminals, 1 Ferrule
