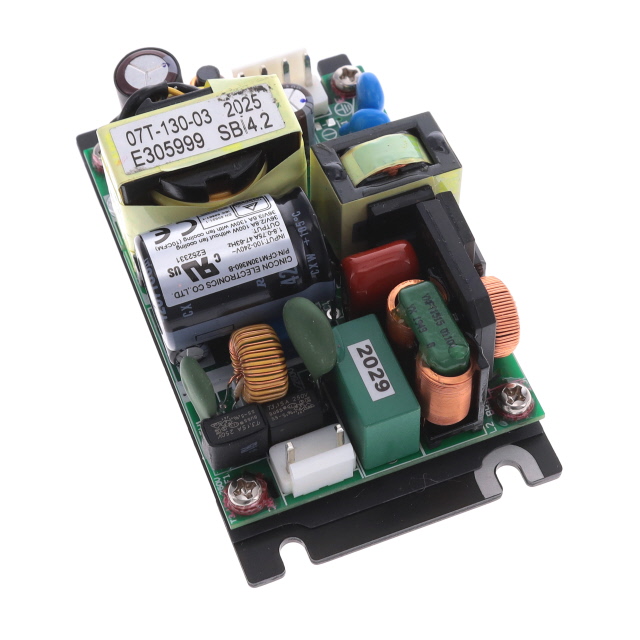

CFM130M360-B

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 36V 101W

Deep-Dive with AI

Search across all available documentation for this part.

CFM130M360-B

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 36V 101W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 73.00
		250	$ 36.16

Description

General part information

CFM130 Series

Open Frame AC DC Converters 1 Output 36V 80 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFM130M360-B	CFM130 Series

Applications	Household Appliances, Medical	Household Appliances, Medical, Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, cURus, FCC, TUV	CE, cURus, FCC, TUV, DEMKO
Current - Output (Max)	-	10.8 A
Current - Output 1	2.8 A	2.1 - 8.34 A
Efficiency	94 %	93 - 94 %
Features	-	PFC, Universal Input, Standby Output
Line Regulation	-	0.5 %
Load Regulation	-	1 %
Minimum Load Required	-	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-30 °C	-30 °C
Power (Watts)	130 W	130 W
Power (Watts)	101 W	100 - 130 W
Size / Dimension [x]	3.6 in	3 - 3.6 in
Size / Dimension [x]	91.4 mm	76.2 - 91.4 mm
Size / Dimension [y]	2 in	2 - 2.52 in
Size / Dimension [y]	50.8 mm	50.8 - 64 mm
Size / Dimension [z]	33.1 mm	30.5 - 34.5 mm
Size / Dimension [z]	1.3 "	1.2 - 1.36 "
Standard Number	-	60335-1, 60601-1, 62368-1
Type	Open Frame	Open Frame, Enclosed
Voltage - Input [Max]	264 VAC	240 - 264 VAC
Voltage - Input [Min]	80 VAC	80 - 100 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	36 V	12 - 48 V

CFM130 Series

AC/DC CONVERTER 48V 101W

Part	Mounting Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Applications	Power (Watts)	Power (Watts)	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Type	Current - Output 1	Features	Standard Number	Line Regulation	Current - Output (Max) [Max]	Load Regulation
Cincon Electronics Co. LTD CFM130M480-B	Chassis Mount	1	3.6 in	33.1 mm	2 in	91.4 mm	50.8 mm	1.3 "	4000 V	Household Appliances, Medical	130 W	101 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	94 %	48 V	Open Frame	2.1 A
Cincon Electronics Co. LTD CFM130M360-B	Chassis Mount	1	3.6 in	33.1 mm	2 in	91.4 mm	50.8 mm	1.3 "	4000 V	Household Appliances, Medical	130 W	101 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	94 %	36 V	Open Frame	2.8 A
Cincon Electronics Co. LTD CFM130M120-C	Chassis Mount	1	3.6 in	34.5 mm	2.52 "	91.4 mm	64 mm	1.36 "	4000 V	Household Appliances, Medical	130 W	100 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	93 %	12 V	Enclosed	8.34 A	PFC, Universal Input
Cincon Electronics Co. LTD CFM130S240-B	Chassis Mount	1	3.6 in	33 mm	2 in	91.4 mm	50.8 mm	1.3 "	4000 V	Household Appliances, ITE (Commercial)	130 W	101 W	CE, cURus, DEMKO, FCC	240 VAC	100 VAC	70 °C	-30 °C	93 %	24 V	Open Frame	4.2 A	PFC, Standby Output, Universal Input	60335-1, 60601-1, 62368-1
Cincon Electronics Co. LTD CFM130M360-C	Chassis Mount	1	3.6 in	34.5 mm	2.52 "	91.4 mm	64 mm	1.36 "	4000 V	Household Appliances, Medical	130 W	101 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	94 %	36 V	Enclosed	2.8 A	PFC, Universal Input
Cincon Electronics Co. LTD CFM130M120-P		1								Medical		130 W		264 VAC	80 VAC	70 °C	-30 °C	93 %	12 V	Open Frame		Universal Input		0.5 %	10.8 A	1 %
Cincon Electronics Co. LTD CFM130M120	Chassis Mount	1	3 "	30.5 mm	2 in	76.2 mm	50.8 mm	1.2 "	4000 V	Household Appliances, Medical	130 W	100 W	CE, cURus, FCC, TUV	264 VAC	80 VAC	70 °C	-30 °C	93 %	12 V	Open Frame	8.34 A	PFC, Universal Input
