Specification	0783492001

Color	Black
Connector Style	Hold Down Left, Impact
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	30 µin
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Power Contacts (Typical)	4
Termination	Press-Fit
Voltage Rating	250 V

078349 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Material Flammability Rating	Contact Finish	Number of Positions	Power Contacts (Typical)	Connector Style	Color	Number of Rows	Mounting Type	Contact Finish Thickness	Termination	Number of Positions Loaded	Connector Type
Molex 0783491002	85 °C	-20 °C	250 V	UL94 V-0	Gold	4	4	Hold Down Left Impact	Black	2	Board Edge Right Angle Through Hole	30 µin	Press-Fit	All	Header Male Blades

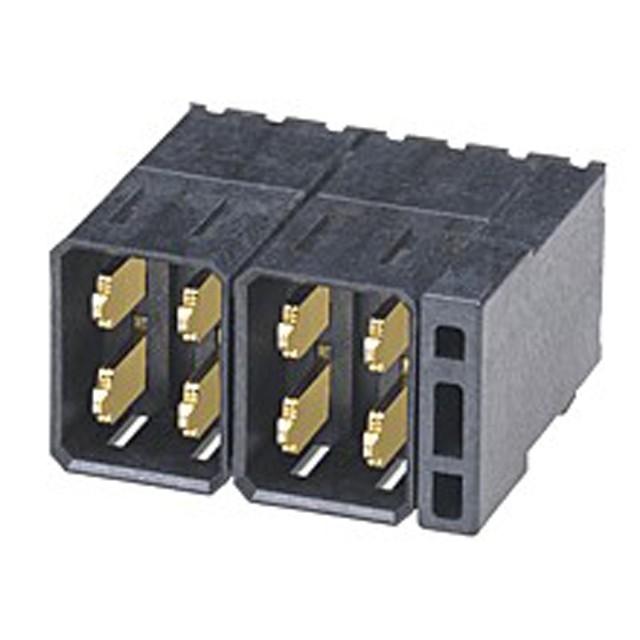

Molex 0783492021	85 °C	-55 °C	250 V	UL94 V-0	Gold	8	8	Hold Down Left Impact	Black	2	Board Edge Right Angle Through Hole	30 µin	Press-Fit	All	Header Male Blades

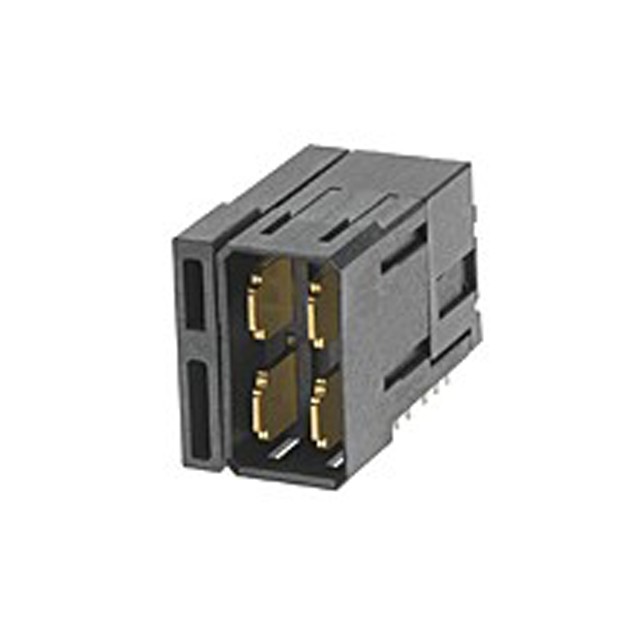

Molex 0783491001	85 °C	-20 °C	250 V	UL94 V-0	Gold	4	4	Hold Down Left Impact	Black	2	Board Edge Right Angle Through Hole	30 µin	Press-Fit	All	Header Male Blades
Molex 0783491044	85 °C	-55 °C	250 V	UL94 V-0	Gold	8	8	Hold Down Left Impact	Black	2	Board Edge Right Angle Through Hole	30 µin	Press-Fit	All	Header Male Blades
Molex 0783492001	85 °C	-55 °C	250 V	UL94 V-0	Gold	4	4	Hold Down Left Impact	Black	2	Board Edge Right Angle Through Hole	30 µin	Press-Fit	All	Header Male Blades
Molex 0783491004	85 °C	-55 °C	250 V	UL94 V-0	Gold	4	4	Hold Down Left Impact	Black	2	Board Edge Right Angle Through Hole	30 µin	Press-Fit	All	Header Male Blades

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
