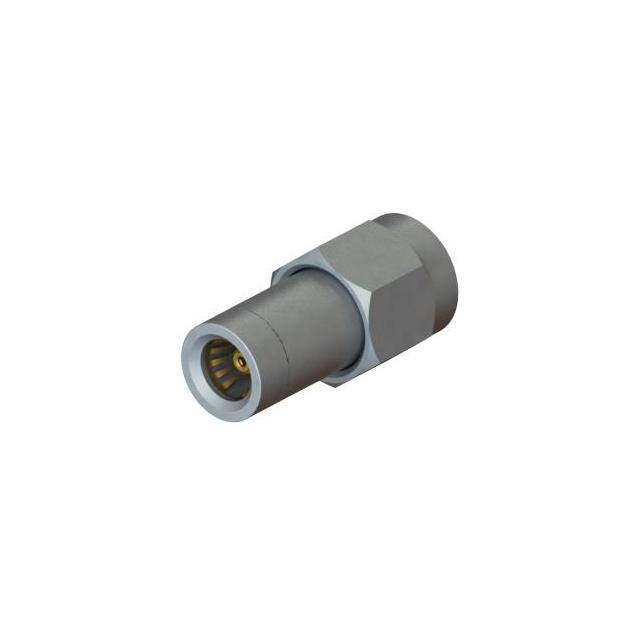

SF1114-6006

Active

Amphenol SV Microwave

BMMA FEMALE TO SMA MALE ADAPTER /INDIVIDUAL - BAG (PACK FILL QTY: 1)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BMMA FEMALE TO SMA MALE ADAPTER /INDIVIDUAL - BAG (PACK FILL QTY: 1)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1114-6006

Adapter Series	SMA to BMMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BMMA Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mating Cycles	Adapter Series	Style	Fastening Type	Conversion Type	Adapter Type	Body Material	Impedance	Convert To (Adapter End)	Dielectric Material	Center Contact Material	Convert From (Adapter End)	Mounting Type	Frequency - Max [Max]	Includes	Mounting Feature
Amphenol SV Microwave SF1114-6006	-55 °C	125 °C	Gold	5000	SMA to BMMA	Straight	Snap-On Threaded	Between Series	Plug to Jack	Stainless Steel	50 Ohms	Male Pin SMA Plug	Polytetrafluoroethylene (PTFE)	Beryllium Copper	BMMA Jack Female Socket	Free Hanging (In-Line)	18 GHz
Amphenol SV Microwave SF1114-6008	-65 ░C	125 °C	Gold	5000	SMA to BMMA	Straight	Snap-On Threaded	Between Series	Plug to Jack	Stainless Steel	50 Ohms	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Beryllium Copper	BMMA Plug Male Pin		18 GHz	1 Connector 1 Lockwasher 1 Nut	Bulkhead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BMMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
