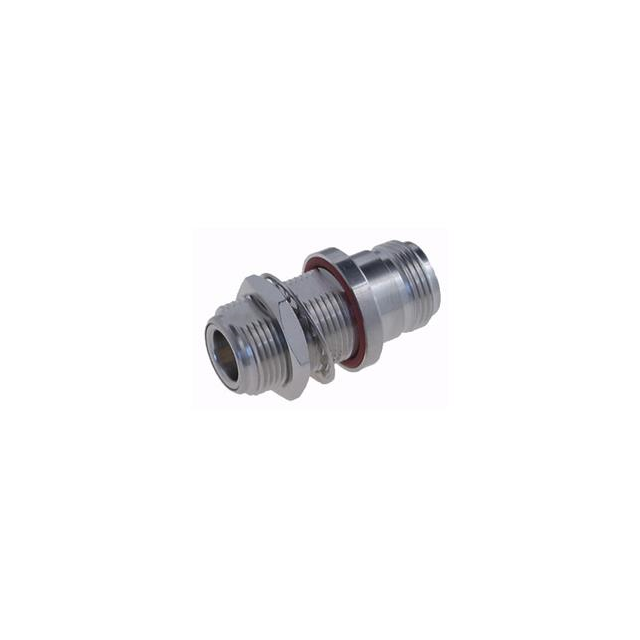

Specification	34_N-50-0-3/133_NE

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	N Jack
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead
Mounting Type	Panel Mount
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

34_N-50 Series

Part	Adapter Series	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert From (Adapter End)	Adapter Type	Frequency - Max	Mounting Feature	Center Contact Plating	Center Gender	Mounting Type	Style	Fastening Type	Impedance	Conversion Type	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Material	Mating Cycles	Body Material	Body Finish
Huber+Suhner, Inc. 34_N-50-0-3/133_NE	N to N	N Jack	Female Socket	Female Socket N Jack	Jack to Jack	18 GHz	Bulkhead	Gold	Female	Panel Mount	Straight	Threaded	50 Ohm	Same Series	-65 °C	165 °C	Beryllium Copper	500 cycles	Brass	White Bronze
Huber+Suhner, Inc. 34_N-50-0-51/193_NE	N to N	N Jack	Female Socket	Female Socket N Jack	Jack to Jack	18 GHz	Bulkhead	Gold	Female	Panel Mount	Straight	Threaded	50 Ohm	Same Series	-55 °C	70 °C	Beryllium Copper	500 cycles	Stainless Steel
