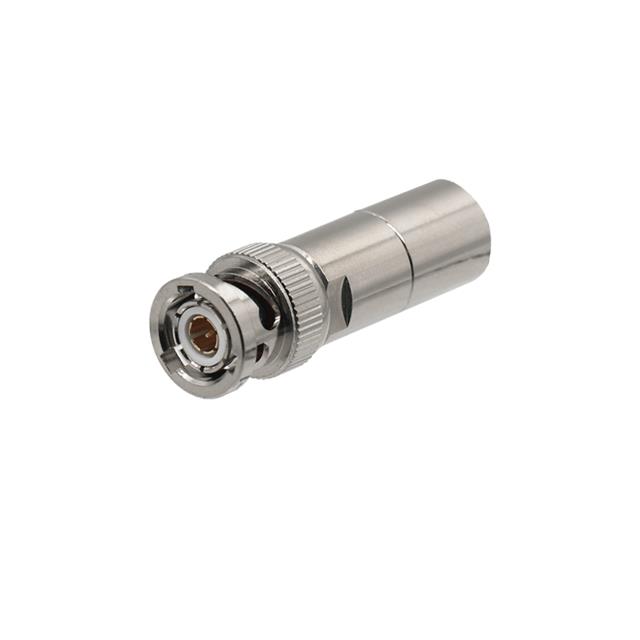

TET-1553-1-1K

Active

Cinch Connectivity Solutions Trompeter

MIL-STD-1553B TERMINATOR, 1000 O

Deep-Dive with AI

Search across all available documentation for this part.

TET-1553-1-1K

Active

Cinch Connectivity Solutions Trompeter

MIL-STD-1553B TERMINATOR, 1000 O

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 177.58
		10	$ 138.80
		25	$ 126.56
		50	$ 118.31

Description

General part information

TET-1553 Series

Terminator Coax Connector Plug, Male Pin TRB 1 kOhms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TET-1553-1-1K	TET-1553 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Connector Style	TRB	TRB
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Finish	Gold	Gold
Contact Material	Brass	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Chain	Chain
Frequency - Max [Max]	1 MHz	1 MHz
Impedance	1 kOhms	1 - 78 Ohms
Mounting Type	Free Hanging, Cap	Free Hanging, Cap

TET-1553 Series

MIL-STD-1553B TERMINATOR, 3000 O

Part	Contact Material	Frequency - Max [Max]	Mounting Type	Contact Finish	Impedance	Body Material	Connector Style	Features	Body Finish	Connector Type	Dielectric Material
Cinch Connectivity Solutions Trompeter TET-1553-2-3K	Brass	1 MHz	Cap, Free Hanging	Gold	3 Ohms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-3-78	Brass	1 MHz	Cap, Free Hanging	Gold	78 Ohms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-1-1K	Brass	1 MHz	Cap, Free Hanging	Gold	1 kOhms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-1-78	Brass	1 MHz	Cap, Free Hanging	Gold	78 Ohms	Brass	TRB		Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-2-78	Brass	1 MHz	Cap, Free Hanging	Gold	78 Ohms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-3-1K	Brass	1 MHz	Cap, Free Hanging	Gold	1 kOhms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-3-3K	Brass	1 MHz	Cap, Free Hanging	Gold	3 Ohms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-2-1K	Brass	1 MHz	Cap, Free Hanging	Gold	1 kOhms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-2-2K	Brass	1 MHz	Cap, Free Hanging	Gold	2 kOhms	Brass	TRB	Chain	Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter TET-1553-1-2K	Brass	1 MHz	Cap, Free Hanging	Gold	2 kOhms	Brass	TRB		Nickel	Male Pin, Plug	Polytetrafluoroethylene (PTFE)
