PK5-040S-CLT-3-GGF

Active

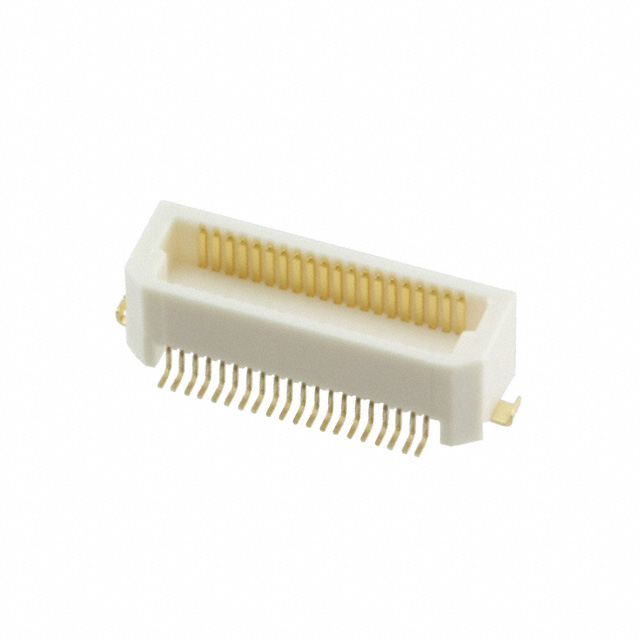

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

CONN SOCKET 40POS SMD GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

Specification	PK5-040S-CLT-3-GGF	PK5 Series

Connector Type	Socket, Outer Shroud Contacts	Socket, Outer Shroud Contacts
Contact Finish	Gold	Gold
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	0.159 in	0.119 - 0.159 in
Height Above Board	4.04 mm	3.02 - 4.04 mm
Mated Stacking Heights	7 mm, 5 mm	4 - 7 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	40 - 160
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

Part	Number of Positions	Number of Rows	Features	Mated Stacking Heights	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Connector Type
3M PK5-050P-CLT-2-GGF	50	2	Board Guide, Solder Retention	4 mm, 5 mm, 6 mm	Gold	0.119 in	3.02 mm	0.5 mm	0.02 in	Surface Mount
3M PK5-040S-CLT-3-GGF	40	2	Board Guide, Solder Retention	5 mm, 7 mm	Gold	0.159 in	4.04 mm	0.5 mm	0.02 in	Surface Mount	Outer Shroud Contacts, Socket
3M PK5-040P-CLT-2-GGF	40	2	Board Guide, Solder Retention	4 mm, 5 mm, 6 mm	Gold	0.119 in	3.02 mm	0.5 mm	0.02 in	Surface Mount
3M PK5-160S-CLT-2-GGF	160	2	Board Guide, Solder Retention	4 mm, 6 mm	Gold	0.12 in	3.05 mm	0.5 mm	0.02 in	Surface Mount	Outer Shroud Contacts, Socket
