325-014-520-108

Active

EDAC Inc.

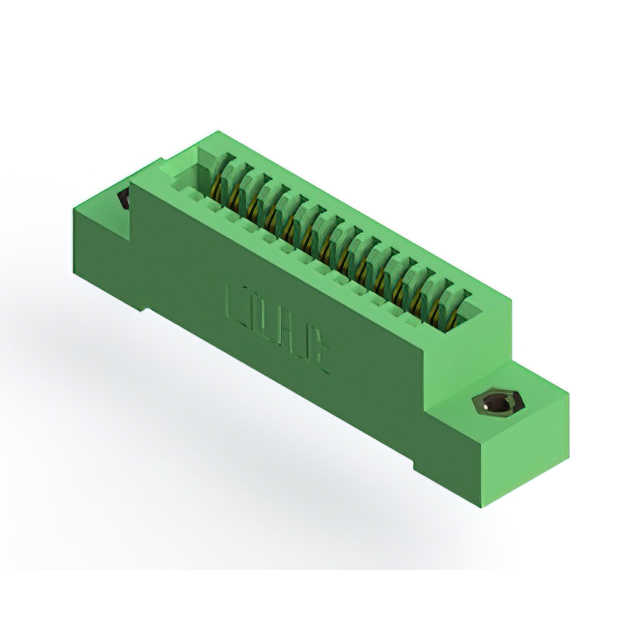

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 14 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-014-520-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 14 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-014-520-108

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	14
Number of Positions/Bay/Row [custom]	14
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

325-014 Series

Part	Card Type	Material - Insulation	Read Out	Card Thickness	Card Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Termination Rows	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Gender	Contact Type	Color	Number of Positions/Bay/Row [custom]	Mounting Type
EDAC Inc. 325-014-520-109	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Single	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	1	14	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Solder	1	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	14	Through Hole
EDAC Inc. 325-014-520-207	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	2	14		Flush Mount M3 Threaded Insert Top Opening		Solder	2	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	7	Through Hole
EDAC Inc. 325-014-520-201	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	2	14				Solder	2	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	7	Through Hole
EDAC Inc. 325-014-540-209	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	2	14	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Wire Wrap	2	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	7	Through Hole
EDAC Inc. 325-014-500-207	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	2	14		Flush Mount M3 Threaded Insert Top Opening		Solder Eyelet(s)	2	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	7	Through Hole
EDAC Inc. 325-014-540-207	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	2	14		Flush Mount M3 Threaded Insert Top Opening		Wire Wrap	2	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	7	Through Hole
EDAC Inc. 325-014-500-209	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Dual	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	2	14	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Solder Eyelet(s)	2	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	7	Through Hole
EDAC Inc. 325-014-520-108	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Single	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	1	14		4-40 Flush Mount Threaded Insert Top Opening		Solder	1	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	14	Through Hole
EDAC Inc. 325-014-540-101	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Single	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	1	14				Wire Wrap	1	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	14	Through Hole
EDAC Inc. 325-014-540-109	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Single	3.18 mm	0.125 in	125 °C	-65 ░C	10 Áin	0.25 Ám	1	14	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	Wire Wrap	1	Copper Alloy	2.54 mm	0.1 in	Gold	Female	Cantilever	Green	14	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.25
Newark	Each	1	$ 15.31
		100	$ 11.80
		250	$ 9.79
		500	$ 8.75
		1000	$ 7.00

Description

General part information

325-014 Series

14 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
