SML-LXR85SIC-TR

Active

Lumex Opto/Components Inc.

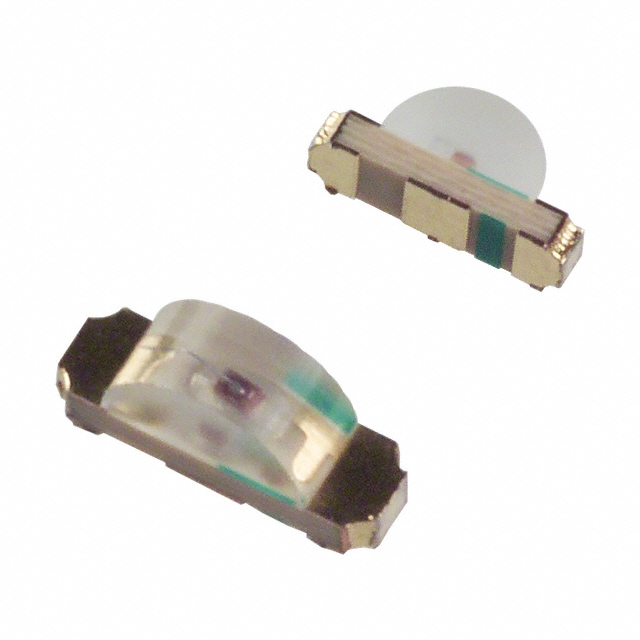

LED RED CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

SML-LXR85SIC-TR

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LXR85SIC-TR	SML-LXR85 Series

Color	Red	Green, Yellow, Red, Blue
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	1 mm	1 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2 mm	2 mm
Lens Size [y]	1 mm	1 mm
Lens Style	Rectangle with Domed Top	Rectangle with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	70 mcd	10 - 70 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	1.5 mm	1.5 - 1.6 mm
Viewing Angle	160 °	130 - 160 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 3.5 V
Wavelength - Peak	636 nm	525 - 660 nm

SML-LXR85 Series

LED GREEN CLEAR SMD R/A

Part	Mounting Type	Millicandela Rating	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Lens Style	Color	Package / Case	Lens Transparency	Configuration	Viewing Angle	Current - Test	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
Lumex Opto/Components Inc. SML-LXR85SUGC-TR	Surface Mount, Right Angle	45 mcd	1 mm	1.6 mm	3.2 mm	Colorless	Rectangle with Domed Top	Green	2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	2.2 V
Lumex Opto/Components Inc. SML-LXR85SYC-TR	Surface Mount, Right Angle	50 mcd	1 mm	1.6 mm	3.2 mm	Colorless	Rectangle with Domed Top	Yellow	2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	2 V	590 nm
Lumex Opto/Components Inc. SML-LXR85IC-TR	Surface Mount, Right Angle	12 mcd	1 mm	1.5 mm	3.2 mm	Colorless	Rectangle with Domed Top	Red	2-SMD, No Lead	Clear	Standard	130 °	20 mA	2 mm	1 mm	2 V	635 nm
Lumex Opto/Components Inc. SML-LXR85GC-TR	Surface Mount, Right Angle	12 mcd	1 mm	1.5 mm	3.2 mm	Colorless	Rectangle with Domed Top	Green	2-SMD, No Lead	Clear	Standard	130 °	20 mA	2 mm	1 mm	2.2 V	565 nm
Lumex Opto/Components Inc. SML-LXR85SIC-TR	Surface Mount, Right Angle	70 mcd	1 mm	1.5 mm	3.2 mm	Colorless	Rectangle with Domed Top	Red	2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	2 V	636 nm
Lumex Opto/Components Inc. SML-LXR85SRC-TR	Surface Mount, Right Angle	30 mcd	1 mm	1.5 mm	3.2 mm	Colorless	Rectangle with Domed Top	Red	2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	1.7 V	660 nm
Lumex Opto/Components Inc. SML-LXR85YC-TR	Surface Mount, Right Angle	10 mcd	1 mm	1.6 mm	3.2 mm	Colorless	Rectangle with Domed Top	Yellow	2-SMD, No Lead	Clear	Standard	130 °	20 mA	2 mm	1 mm	2.1 V	585 nm
Lumex Opto/Components Inc. SML-LXR85UPGC-TR	Surface Mount, Right Angle	45 mcd	1 mm	1.6 mm	3.2 mm	Colorless	Rectangle with Domed Top	Green	2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	3.5 V	525 nm
Lumex Opto/Components Inc. SML-LXR85USBC-TR	Surface Mount, Right Angle	30 mcd	1 mm	1.6 mm	3.2 mm	Colorless	Rectangle with Domed Top	Blue	2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	3.5 V
Lumex Opto/Components Inc. SML-LXR85SOC-TR	Surface Mount, Right Angle	70 mcd	1 mm	1.5 mm	3.2 mm	Colorless	Rectangle with Domed Top		2-SMD, No Lead	Clear	Standard	160 °	20 mA	2 mm	1 mm	2 V	610 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.62
		10	$ 0.41
		100	$ 0.27
		1000	$ 0.21
	Digi-Reel®	1	$ 0.62
		10	$ 0.41
		100	$ 0.27
		1000	$ 0.21
	Tape & Reel (TR)	3000	$ 0.19
		6000	$ 0.18
		15000	$ 0.17
		30000	$ 0.17

Description

General part information

SML-LXR85 Series

Red LED Indication - Discrete 2V 2-SMD, No Lead

Documents

Technical documentation and resources

No documents available
