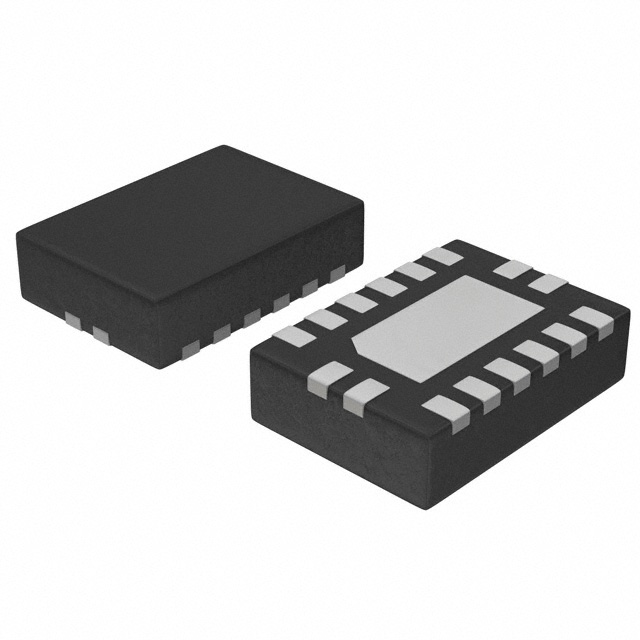

MAX11198ATE+
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 16BIT SAR 16TQFN
Deep-Dive with AI
Search across all available documentation for this part.
MAX11198ATE+
ActiveAnalog Devices Inc./Maxim Integrated
IC ADC 16BIT SAR 16TQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11198ATE+ | MAX11198 Series |
|---|---|---|
| Architecture | SAR | SAR |
| Configuration | S/H-ADC | S/H-ADC |
| Data Interface | SPI | SPI |
| Features | Simultaneous Sampling | Simultaneous Sampling |
| Input Range | - | ±VREF |
| Input Type | Differential | Differential |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | 2 | 2 |
| Number of Bits | 16 | 16 |
| Number of Inputs | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Ratio - S/H:ADC | 1:1 | 1:1 |
| Reference Type | External | External |
| Sampling Rate (Per Second) | 2M | 2M |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 16-TQFN (2x3) | 16-TQFN (2x3) |
| Utilized IC / Part | - | MAX11198ATE+ |
| Voltage - Supply, Analog [Max] | 5.25 V | 5.25 V |
| Voltage - Supply, Analog [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAX11198 Series
IC ADC 16BIT SAR 16TQFN
| Part | Features | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of Bits | Package / Case | Sampling Rate (Per Second) | Architecture | Input Type | Number of Inputs | Configuration | Mounting Type | Reference Type | Ratio - S/H:ADC | Number of A/D Converters | Data Interface | Input Range | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11198ATE+ | Simultaneous Sampling | 5.25 V | 3 V | 125 °C | -40 °C | 16-TQFN (2x3) | 16 | 16-WFQFN Exposed Pad | 2M | SAR | Differential | 2 | S/H-ADC | Surface Mount | External | 1:1 | 2 | SPI | |||
Analog Devices Inc./Maxim Integrated MAX11198EVKIT# | 16 | 2M | 2 | SPI | ±VREF | MAX11198ATE+ | Board(s) | ||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11198ATE+T | Simultaneous Sampling | 5.25 V | 3 V | 125 °C | -40 °C | 16-TQFN (2x3) | 16 | 16-WFQFN Exposed Pad | 2M | SAR | Differential | 2 | S/H-ADC | Surface Mount | External | 1:1 | 2 | SPI |
Description
General part information
MAX11198 Series
16 Bit Analog to Digital Converter 2 Input 2 SAR 16-TQFN (2x3)
