TLE75080ESDXUMA1

Active

Infineon Technologies

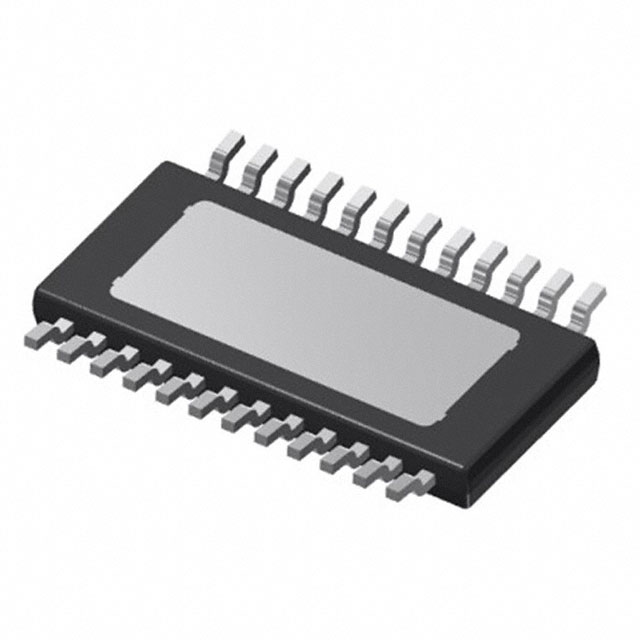

THE TLE75080-ESD IS AN EIGHT CHANNEL HIGH-SIDE POWER SWITCH IN PG-TSDSO-24-21 PACKAGE PROVIDING EMBEDDED PROTECTIVE FUNCTIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TLE75080ESDXUMA1

Active

Infineon Technologies

THE TLE75080-ESD IS AN EIGHT CHANNEL HIGH-SIDE POWER SWITCH IN PG-TSDSO-24-21 PACKAGE PROVIDING EMBEDDED PROTECTIVE FUNCTIONS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLE75080ESDXUMA1

Current - Output (Max)	330 mA
Fault Protection	Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect
Features	Slew Rate Controlled
Grade	Automotive
Interface	SPI
Mounting Type	Surface Mount
Number of Outputs	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side or Low Side
Output Type	N-Channel
Package / Case	24-TSSOP Exposed Pad
Package / Case [custom]	3.9 mm
Package / Case [custom]	0.154 in
Qualification	AEC-Q100
Ratio - Input:Output	1:8
Rds On (Typ)	1 Ohm
Supplier Device Package	PG-TSDSO-24-21
Switch Type	Relay, Solenoid Driver
Voltage - Load [Max]	28 V
Voltage - Load [Min]	3 V
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

TLE75080 Series

Part	Supplier Device Package	Rds On (Typ)	Fault Protection	Interface	Features	Ratio - Input:Output	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Qualification	Grade	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Type	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output (Max)	Number of Outputs	Package / Case [custom]	Package / Case	Package / Case [custom]	Output Type	Output Configuration	Features [custom]	Features [custom]
Infineon Technologies TLE75080ESHXUMA1	PG-TSDSO-24-21	1 Ohm	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	SPI	Slew Rate Controlled	1:8	5.5 V	3 V	AEC-Q100	Automotive	Surface Mount	150 °C	-40 °C	Relay Solenoid Driver	3 V	28 V	330 mA	8	3.9 mm	24-TSSOP Exposed Pad	0.154 in	N-Channel	High Side
Infineon Technologies TLE75080ESDXUMA1	PG-TSDSO-24-21	1 Ohm	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	SPI	Slew Rate Controlled	1:8	5.5 V	3 V	AEC-Q100	Automotive	Surface Mount	150 °C	-40 °C	Relay Solenoid Driver	3 V	28 V	330 mA	8	3.9 mm	24-TSSOP Exposed Pad	0.154 in	N-Channel	High Side or Low Side
Infineon Technologies TLE75080EMHXUMA1	PG-SSOP-24-9	1 Ohm	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	SPI		1:8	5.5 V	3 V			Surface Mount	150 °C	-40 °C	Relay Solenoid Driver	3 V	28 V	330 mA	8		24-LSSOP		N-Channel	High Side	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.97
		10	$ 2.67
		25	$ 2.52
		100	$ 2.14
		250	$ 2.01
		500	$ 1.76
		1000	$ 1.46
	Digi-Reel®	1	$ 2.97
		10	$ 2.67
		25	$ 2.52
		100	$ 2.14
		250	$ 2.01
		500	$ 1.76
		1000	$ 1.46
	Tape & Reel (TR)	3000	$ 1.36
		6000	$ 1.31
Newark	Each (Supplied on Cut Tape)	1	$ 2.68
		10	$ 2.00
		25	$ 1.82
		50	$ 1.73
		100	$ 1.63
		250	$ 1.55
		500	$ 1.49
		1000	$ 1.45

Description

General part information

TLE75080 Series

It is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and diagnosis of the loads as well as of the device. For direct control and PWM there are two input pins available connected to two outputs by default. Additional or different outputs can be controlled by the same input pins (programmable via SPI).
