CBU-08PMDS-TC7001

Active

Amphenol LTW

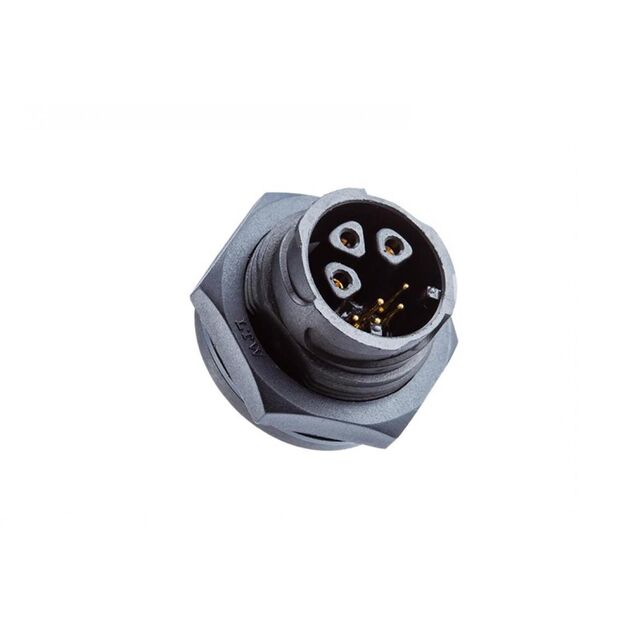

CERES, MIDDLE SIZE, PLASTIC, 10A+2A, 08 PINS, MALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, CIRCULAR, 3 POINTS LOCK, S

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 10A+2A, 08 PINS, MALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, CIRCULAR, 3 POINTS LOCK, S

Technical Specifications

Parameters and characteristics for this part

Specification	CBU-08PMDS-TC7001

Color	Black
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A, 10 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Shell Size - Insert	Insert Material	Connector Type	Shielding	Orientation	Number of Positions	Ingress Protection	Current Rating (Amps)	Fastening Type	Color	Primary Material	Contact Material	Voltage Rating	Shell Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
Amphenol LTW CBU-08PMDS-TC7001	C	Polyamide (PA) Nylon Glass Filled	Female Sockets Male Pins Receptacle	Unshielded	Keyed	8	IP67 - Dust Tight Waterproof	2 A 10 A	Bayonet Lock	Black	Plastic	Copper Alloy	250 VDC	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	-40 °C	105 ░C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
