L112BX

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

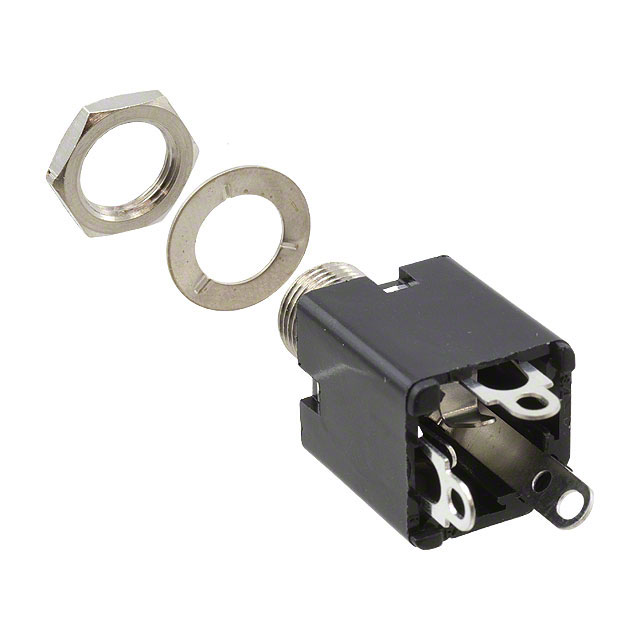

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	L112BX	L11 Series

Actual Diameter [diameter]	0.25 in	0.25 in
Actual Diameter [diameter]	6.35 mm	6.35 mm
Body Color	Silver, Black	Silver, Black
Body Material	Brass	Brass
Connector Type	Phone Jack	Phone Jack
Contact Material	Brass	Brass
Contact Material - Plating	Tin	Tin
Current Rating (Amps)	0.25 A	0.25 A
Features	Thread Lock, Mounting Hardware	Thread Lock, Mounting Hardware
Gender	Female	Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Internal Switch(s)	False	False
Internal Switch(s)	-	Single Switch, Two Switches
Number of Positions/Contacts	-	2 - 3 Conductors
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3 - 5
Panel Hole Size	0.375 in	0.375 in
Panel Hole Size	9.52 mm	9.52 mm
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Mono, Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	3/8"-32	3/8"-32
Voltage - Rated [custom]	48 VDC	48 VDC

CONN JACK MONO 6.35MM PNL MNT

Part	Body Color	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Connector Type	Contact Material - Plating	Signal Lines	Contact Material	Termination	Includes	Internal Switch(s)	Thread Size	Number of Positions/Contacts	Features	Voltage - Rated [custom]	Shielding	Panel Hole Size	Panel Hole Size	Current Rating (Amps)	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Switchcraft Inc. L112AX	Black, Silver	Female	0.25 in	6.35 mm	Phone Jack	Tin	Mono	Brass	Solder Eyelet(s)	Connector, Nut, Washer	Single Switch	3/8"-32	2 Conductors, 3 Conductors	Mounting Hardware, Thread Lock	48 VDC	Unshielded	0.375 in	9.52 mm	0.25 A	Brass
Switchcraft Inc. L112BX	Black, Silver	Female	0.25 in	6.35 mm	Phone Jack	Tin	Stereo	Brass	Solder Eyelet(s)	Connector, Nut, Washer		3/8"-32		Mounting Hardware, Thread Lock	48 VDC	Unshielded	0.375 in	9.52 mm	0.25 A	Brass	3	3
Switchcraft Inc. L114BX	Black, Silver	Female	0.25 in	6.35 mm	Phone Jack	Tin	Stereo	Brass	Solder Eyelet(s)	Connector, Nut, Washer	Two Switches	3/8"-32		Mounting Hardware, Thread Lock	48 VDC	Unshielded	0.375 in	9.52 mm	0.25 A	Brass	3	5
