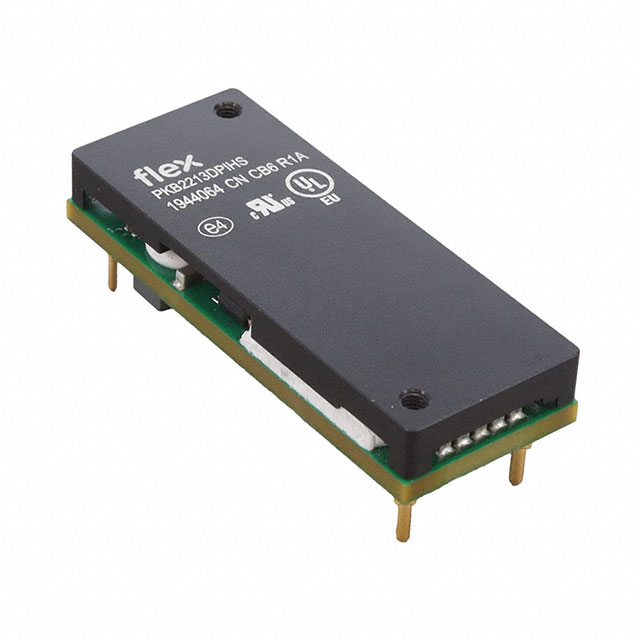

PKB2213DPIHS

Active

Flex Power Modules

DC DC CONVERTER 12V 240W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 12V 240W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 240W

Part	Power (Watts)	Type	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Approval Agency	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Supplier Device Package	Standard Number	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Control Features	Features
Flex Power Modules PKB2213DPIHS	240 W	Isolated Module	12 V	36 V	2250 VDC	CB, CSA, IEC, TUV, UL	ITE (Commercial)	0.52 "	13.2 mm	22.7 mm	2.3 in	58.4 mm	0.89 in	Through Hole	Eighth Brick	62368-1	Eighth Brick	125 °C	-40 °C	1	20 A	95.5 %	18 V	Active Low, Enable	Baseplate, Remote On/Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 20A 18V - 36V Input
