ESD-FPL-16-12

Active

KEMET

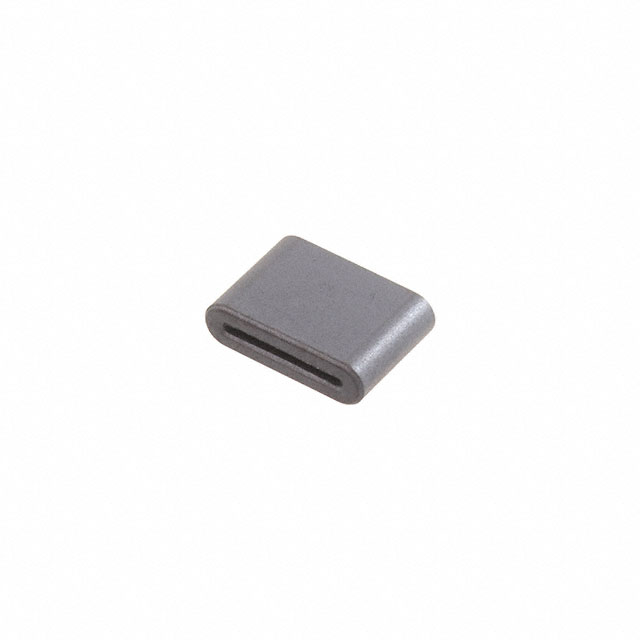

FLAT CABLE CORE, NI-ZN, 11.5MM X 0.85MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

FLAT CABLE CORE, NI-ZN, 11.5MM X 0.85MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Inner Dimension [y]	Inner Dimension [x]	Inner Dimension [y]	Inner Dimension [x]	Material	Type	Outer Dimension [z]	Outer Dimension [x]	Outer Dimension [x]	Outer Dimension [z]	Mounting Type	Length	Length	Outer Dimension [y]	Outer Dimension [y]	Length [x]	Length [x]
KEMET ESD-FPL-33.5-8	1.5 mm	27.5 mm	0.059 "	1.083 "	NIZn	Flat	6.5 mm	33.5 mm	1.319 in	0.256 "	Free Hanging	8 mm	0.315 in
KEMET ESD-FPL-34-15	0.031 in 0.8 mm	1.181 in 30 mm			NIZn	Flat	6 mm			0.236 "	Free Hanging			34 mm	1.339 "	15 mm	0.591 in
KEMET ESD-FPL-24.5-8	0.9 mm	20 mm	0.035 "	0.787 in	NIZn	Flat	4.5 mm			0.177 "	Free Hanging	8 mm	0.315 in	24.5 mm	0.965 in
KEMET ESD-FPL-14.5-3	0.8 mm	11 mm	0.031 in	0.433 in	NIZn	Flat		14.5 mm	0.571 in		Free Hanging			2.75 mm	0.108 in	3 mm	0.118 "
KEMET ESD-FPL-45-12	0.059 in	1.575 in			NIZn	Flat		1.78 in	45.2 mm		Free Hanging	12 mm	0.472 "	0.256 in	6.5 mm
KEMET ESD-FPL-28-10	0.8 mm	24 mm	0.031 in	0.945 in	NIZn	Flat		28 mm	1.102 in		Free Hanging	10 mm	0.394 in	5 mm	0.197 "
KEMET ESD-FPL-16-12					NIZn	Flat	4.5 mm			0.177 "	Free Hanging	12 mm	0.472 "	16 mm	0.63 in
KEMET ESD-FPL-40-10	1.3 mm	34.8 mm	0.051 in	1.37 "	NIZn	Flat	6.5 mm			0.256 "	Free Hanging	10 mm	0.394 in	40 mm	1.575 "
KEMET ESD-FPL-15	1.5 mm	23.5 mm	0.059 "	0.925 in	NIZn	Flat	7.7 mm			0.303 in	Free Hanging	14.6 mm		28 mm	1.102 in		0.575 in
KEMET ESD-FPL-45.2-8	1.3 mm	40 mm	0.051 in	1.575 "	NIZn	Flat		1.78 in	45.2 mm		Free Hanging	8 mm	0.315 in	0.256 in	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid Free Hanging Ferrite Core ID 0.453" W x 0.033" H (11.50mm x 0.85mm) OD 0.630" W x 0.177" H (16.00mm x 4.50mm) Length 0.472" (12.00mm)
