STTH60RQ06WL

Active

STMicroelectronics

RECTIFIER, 600V, 60A, DO-247LL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents AN5028 +7

STTH60RQ06WL

Active

STMicroelectronics

RECTIFIER, 600V, 60A, DO-247LL ROHS COMPLIANT: YES

Deep-Dive with AI

Documents AN5028 +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STTH60RQ06WL

Current - Average Rectified (Io)	60 A
Current - Reverse Leakage @ Vr	80 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	65 ns
Speed	200 mA, 500 ns

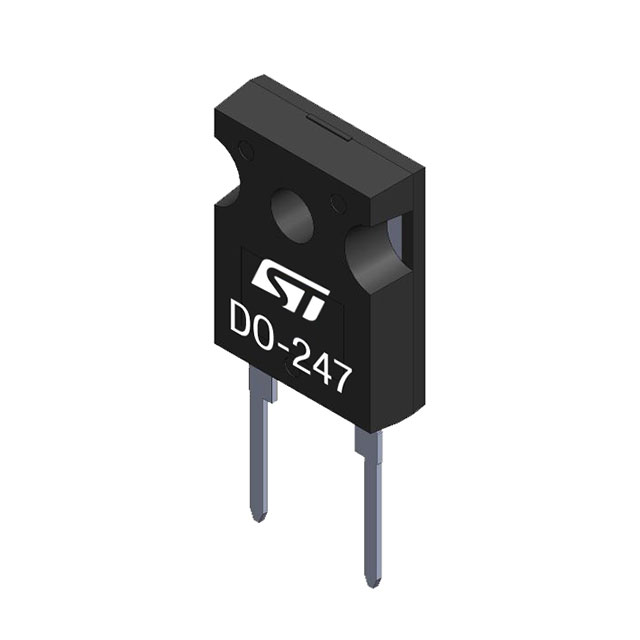

Supplier Device Package	DO-247 LL
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.95 V

STTH60RQ06-M2Y Series

600 V, 2x30 A Turbo 2 Soft Ultrafast Recovery Diode

Part	Package / Case	Technology	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Diode Configuration	Supplier Device Package	Mounting Type	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]
STMicroelectronics STTH60AC06CW	TO-247-3	Standard	30 A	175 °C	40 ns	600 V	10 µA	1 Pair Common Cathode	TO-247	Through Hole	200 mA 500 ns	1.75 V
STMicroelectronics STTH60RQ06CWL	TO-247-3	Standard	30 A	175 °C	55 ns	600 V	40 µA	1 Pair Common Cathode	TO-247 Long Leads	Through Hole	200 mA 500 ns	2.95 V
STMicroelectronics STTH60AC06CP	SC-65-3 TO-3P-3	Standard	30 A	175 °C	40 ns	600 V	10 µA	1 Pair Common Cathode	TO-3P	Through Hole	200 mA 500 ns	1.75 V
STMicroelectronics STTH60L06W	DO-247-2 (Straight Leads)	Standard		175 °C	105 ns	600 V	50 µA		DO-247	Through Hole	200 mA 500 ns	1.55 V	60 A
STMicroelectronics STTH60RQ06WL	TO-247-2	Standard		175 °C	65 ns	600 V	80 µA		DO-247 LL	Through Hole	200 mA 500 ns	2.95 V	60 A
STMicroelectronics STTH60RQ06-M2Y	9-SMD Module	Standard					80 µA		ACEPACK SMIT	Surface Mount		2.95 V	60 A	Single Phase	-40 C	175 °C	600 V
STMicroelectronics STTH60AC06CWL	TO-247-3	Standard	30 A	175 °C	70 ns	600 V	10 µA	1 Pair Common Cathode	TO-247	Through Hole	200 mA 500 ns	1.75 V
STMicroelectronics STTH60L06CW	TO-247-3	Standard	40 A	175 °C	90 ns	600 V	25 µA	1 Pair Common Cathode	TO-247-3	Through Hole	200 mA 500 ns	1.55 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.52
		30	$ 2.00
		120	$ 1.71
		510	$ 1.68
Newark	Each	1	$ 4.24
		10	$ 2.25
		25	$ 2.17
		50	$ 2.10
		100	$ 2.02
		250	$ 1.80

Description

General part information

STTH60RQ06-M2Y Series

The ultrafast bridge rectifier is a high-performance device, generally used in a full wave rectification of an output stage of a DC/DC converter in automotive applications.

Thanks to the high thermal capability of the ACEPACK SMIT package, this integrated module will increase the power density in the application, through very high thermal performances (top side cooling) and insulation done by an embedded ceramic. Especially suited for use in Charger applications, either integrated in the vehicle or in a charging station, this rectifier will enhance the performance of the targeted application.
