1480-8-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.

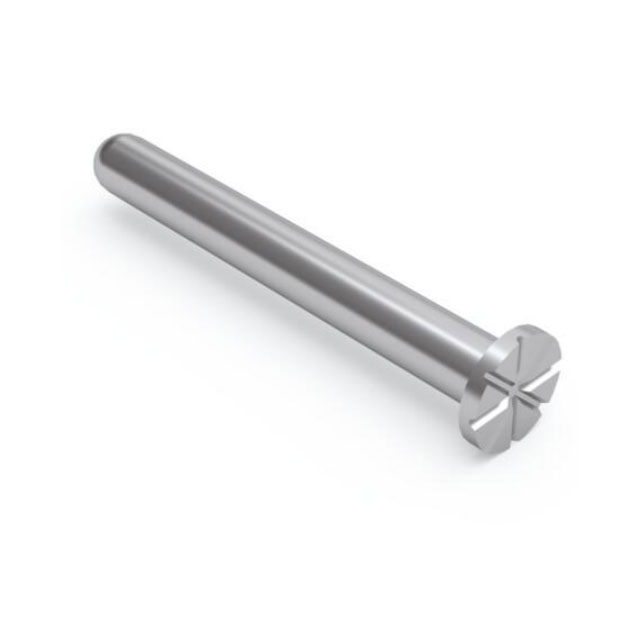

SURFACE MOUNT PIN, .680" LONG SL
Deep-Dive with AI
Search across all available documentation for this part.
1480-8-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SURFACE MOUNT PIN, .680" LONG SL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1480-8-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.14 in |
| Flange Diameter [diameter] | 3.56 mm |
| Length - Above Flange [x] | 16.71 mm |
| Length - Above Flange [x] | 0.658 in |
| Length - Overall [x] | 17.27 mm |
| Length - Overall [x] | 0.68 in |
| Mounting Hole Diameter [diameter] | 0.084 in |
| Mounting Hole Diameter [diameter] | 2.13 mm |
| Mounting Type | Surface Mount |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.28 | |||
Description
General part information
1480-8 Series
PC Pin Terminal Connector Surface Mount Tin 0.080" (2.03mm) Dia
Documents
Technical documentation and resources
No documents available
