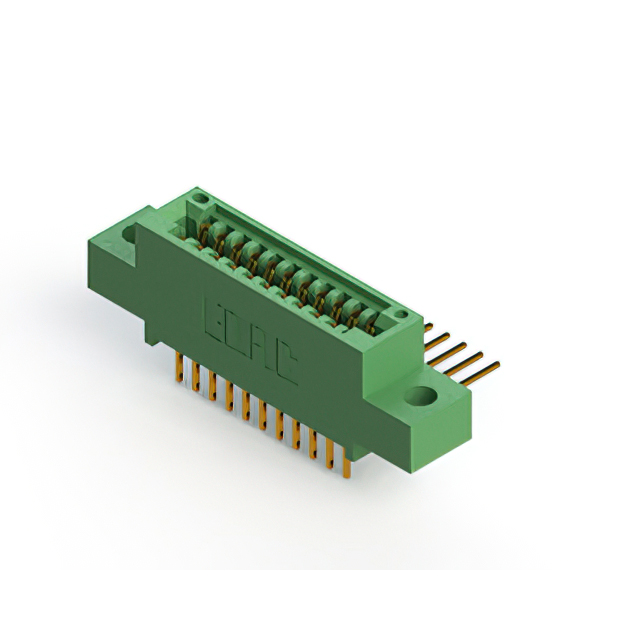

345-022-558-504
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-022-558-504 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
345-022 Series
...
| Part | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Mounting Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Read Out | Number of Rows | Color | Number of Positions/Bay/Row [custom] | Flange Feature | Termination | Contact Type | Contact Material | Pitch [x] | Pitch [x] | Termination Rows | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | 1 | Green | 22 | Flush Mount M3 Threaded Insert Top Opening | Solder | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 1 | |||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Dual | 2 | Green | 11 | 4-40 Threaded Insert Top Mount Opening | Solder | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole Right Angle | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Dual | 2 | Green | 11 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | |||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | 1 | Green | 22 | 4-40 Threaded Insert Top Mount Opening | Solder | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 1 | |||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Dual | 2 | Green | 11 | Flush Mount Top Opening Unthreaded | Wire Wrap | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | 3.25 mm | 0.128 " | |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | 1 | Green | 22 | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 1 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole Right Angle | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Dual | 2 | Green | 11 | Top Mount Opening Unthreaded | Wire Wrap | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | 3.96 mm | 0.156 in | |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | 1 | Green | 22 | Floating Bobbin Top Mount Opening | Wire Wrap | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 1 | 2.95 mm | 0.116 in | |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | 1 | Green | 22 | Floating Bobbin Top Mount Opening | Solder | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 1 | 2.95 mm | 0.116 in | |
EDAC Inc. | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 22 positions | -40 °C | 105 ░C | Female | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Dual | 2 | Green | 11 | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.99 | |
Description
General part information
345-022 Series
22 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
