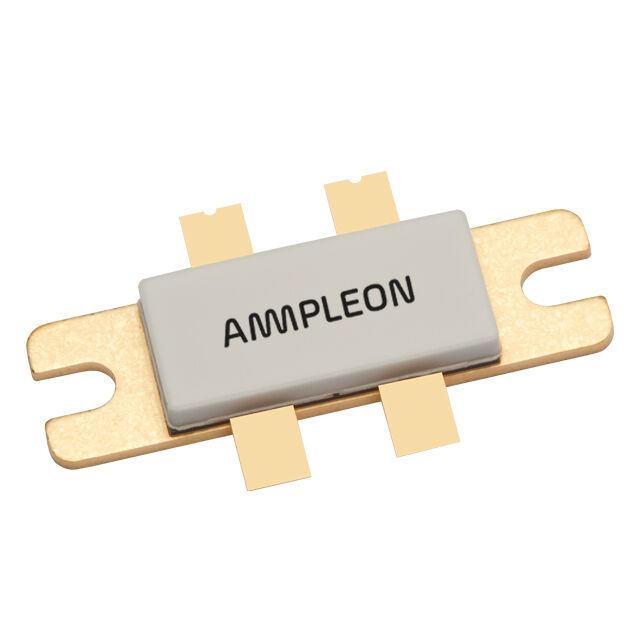

BLF6G22L-40P,118
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF6G22L-40P,118
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLF6G22L-40P,118 | BLF6G22 Series |
|---|---|---|
| Configuration | Common Source, Dual | Common Source, Dual |
| Current - Test | 410 mA | 1.1 - 950 mA |
| Current Rating (Amps) | 16 A | 16 - 34 A |
| Frequency [Max] | 2.17 GHz | 2.17 GHz |
| Frequency [Min] | 2.11 GHz | 2.11 GHz |
| Gain | 19 dB | 17 - 19 dB |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | - | SOT-502B, SOT-539A, SOT-1112A, SOT-608A, SOT-608B |
| Power - Output | 13.5 W | 2.5 - 50 W |
| Supplier Device Package | LDMOST | SOT502B, LDMOST, SOT539A, CDFM6, CDFM2 |
| Voltage - Rated | 65 V | 65 V |
| Voltage - Test | 28 V | 28 - 32 V |
BLF6G22 Series
RF MOSFET LDMOS 28V SOT502B
| Part | Voltage - Rated | Package / Case | Current Rating (Amps) | Voltage - Test | Gain | Current - Test | Supplier Device Package | Frequency [Min] | Frequency [Max] | Power - Output | Mounting Type | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. BLF6G22LS-100,118 | 65 V | SOT-502B | 29 A | 28 V | 18.2 dB | 950 mA | SOT502B | 2.11 GHz | 2.17 GHz | 25 W | Chassis Mount | |
Ampleon USA Inc. BLF6G22L-40P,112 | 65 V | 16 A | 28 V | 19 dB | 410 mA | LDMOST | 2.11 GHz | 2.17 GHz | 13.5 W | Chassis Mount | Common Source, Dual | |
Ampleon USA Inc. BLF6G22-180PN,112 | 65 V | SOT-539A | 32 V | 17.5 dBi | 1.6 A | SOT539A | 2.11 GHz | 2.17 GHz | 50 W | Chassis Mount | Common Source, Dual | |
Ampleon USA Inc. BLF6G22L-40BN,118 | 65 V | SOT-1112A | 28 V | 19 dB | 345 mA | CDFM6 | 2.11 GHz | 2.17 GHz | 2.5 W | Chassis Mount | Common Source, Dual | |
Ampleon USA Inc. BLF6G22LS-130,112 | 65 V | SOT-502B | 34 A | 28 V | 17 dBi | 1.1 A | SOT502B | 2.11 GHz | 2.17 GHz | 30 W | Chassis Mount | |
Ampleon USA Inc. BLF6G22LS-130,118 | 65 V | SOT-502B | 34 A | 28 V | 17 dBi | 1.1 A | SOT502B | 2.11 GHz | 2.17 GHz | 30 W | Chassis Mount | |
Ampleon USA Inc. BLF6G22-45,135 | 65 V | SOT-608A | 28 V | 18.5 dBi | CDFM2 | 2.11 GHz | 2.17 GHz | 2.5 W | Chassis Mount | |||
Ampleon USA Inc. BLF6G22S-45,112 | 65 V | SOT-608B | 28 V | 18.5 dBi | CDFM2 | 2.11 GHz | 2.17 GHz | 2.5 W | ||||
Ampleon USA Inc. BLF6G22L-40P,118 | 65 V | 16 A | 28 V | 19 dB | 410 mA | LDMOST | 2.11 GHz | 2.17 GHz | 13.5 W | Chassis Mount | Common Source, Dual | |
Ampleon USA Inc. BLF6G22LS-100,112 | 65 V | SOT-502B | 29 A | 28 V | 18.2 dB | 950 mA | SOT502B | 2.11 GHz | 2.17 GHz | 25 W | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLF6G22 Series
RF Mosfet 28 V 410 mA 2.11GHz ~ 2.17GHz 19dB 13.5W LDMOST
Documents
Technical documentation and resources
