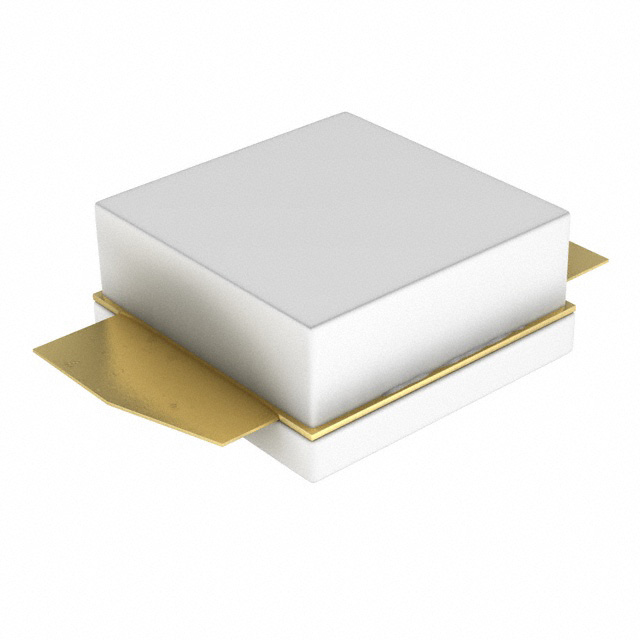

BLF6G22S-45,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 405 mA 2.11GHz ~ 2.17GHz 18.5dB 2.5W CDFM2

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 28V SOT502B

Part	Voltage - Rated	Package / Case	Current Rating (Amps)	Voltage - Test	Gain	Current - Test	Supplier Device Package	Frequency [Min]	Frequency [Max]	Power - Output	Mounting Type	Configuration
Ampleon USA Inc. BLF6G22LS-100,118	65 V	SOT-502B	29 A	28 V	18.2 dB	950 mA	SOT502B	2.11 GHz	2.17 GHz	25 W	Chassis Mount
Ampleon USA Inc. BLF6G22L-40P,112	65 V		16 A	28 V	19 dB	410 mA	LDMOST	2.11 GHz	2.17 GHz	13.5 W	Chassis Mount	Common Source, Dual
Ampleon USA Inc. BLF6G22-180PN,112	65 V	SOT-539A		32 V	17.5 dBi	1.6 A	SOT539A	2.11 GHz	2.17 GHz	50 W	Chassis Mount	Common Source, Dual
Ampleon USA Inc. BLF6G22L-40BN,118	65 V	SOT-1112A		28 V	19 dB	345 mA	CDFM6	2.11 GHz	2.17 GHz	2.5 W	Chassis Mount	Common Source, Dual
Ampleon USA Inc. BLF6G22LS-130,112	65 V	SOT-502B	34 A	28 V	17 dBi	1.1 A	SOT502B	2.11 GHz	2.17 GHz	30 W	Chassis Mount
Ampleon USA Inc. BLF6G22LS-130,118	65 V	SOT-502B	34 A	28 V	17 dBi	1.1 A	SOT502B	2.11 GHz	2.17 GHz	30 W	Chassis Mount
Ampleon USA Inc. BLF6G22-45,135	65 V	SOT-608A		28 V	18.5 dBi		CDFM2	2.11 GHz	2.17 GHz	2.5 W	Chassis Mount
Ampleon USA Inc. BLF6G22S-45,112	65 V	SOT-608B		28 V	18.5 dBi		CDFM2	2.11 GHz	2.17 GHz	2.5 W
Ampleon USA Inc. BLF6G22L-40P,118	65 V		16 A	28 V	19 dB	410 mA	LDMOST	2.11 GHz	2.17 GHz	13.5 W	Chassis Mount	Common Source, Dual
Ampleon USA Inc. BLF6G22LS-100,112	65 V	SOT-502B	29 A	28 V	18.2 dB	950 mA	SOT502B	2.11 GHz	2.17 GHz	25 W	Chassis Mount
