2-826634-0

Active

TE Connectivity AMP Connectors

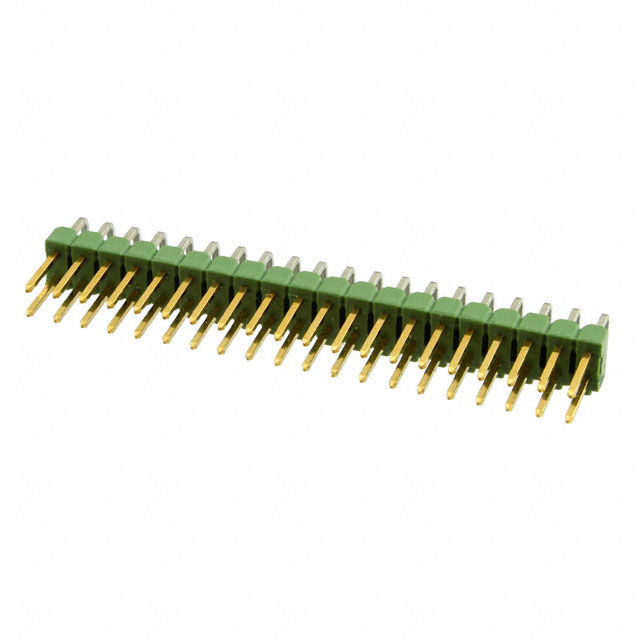

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-826634-0

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.17
		10	$ 2.82
		150	$ 2.53

Description

General part information

826634 Series

Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-826634-0	826634 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	5.56 mm	5.56 mm
Insulation Height [z]	0.219 in	0.219 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	40	8 - 72
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826634 Series

CONN HEADER R/A 12POS 2.54MM

Part	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Current Rating (Amps)	Style	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Mating	Number of Positions	Number of Rows	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height	Contact Shape	Termination	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions
TE Connectivity AMP Connectors 826634-6	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	12	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 2-826634-0	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	40	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 826634-7	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	14	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 1-826634-0	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	20	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 826634-4	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	8	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 1-826634-5	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	30	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 3-826634-6	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold	72	2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin
TE Connectivity AMP Connectors 826634-8	Male Pin	Breakaway, Header	0.1 in	2.54 mm	Unshrouded	Polybutylene Terephthalate (PBT)	5 A	Board to Board, Cable	3.2 mm	0.126 in	Gold		2	Green	Tin	0.099 µm	3.9 µin	0.219 in	5.56 mm	Square	Solder	All	2.54 mm	0.1 in	6.7 mm	0.264 in	-65 ░C	105 ░C	Through Hole, Right Angle	Brass	Push-Pull	UL94 V-0	3 µm	118.1 µin	16
