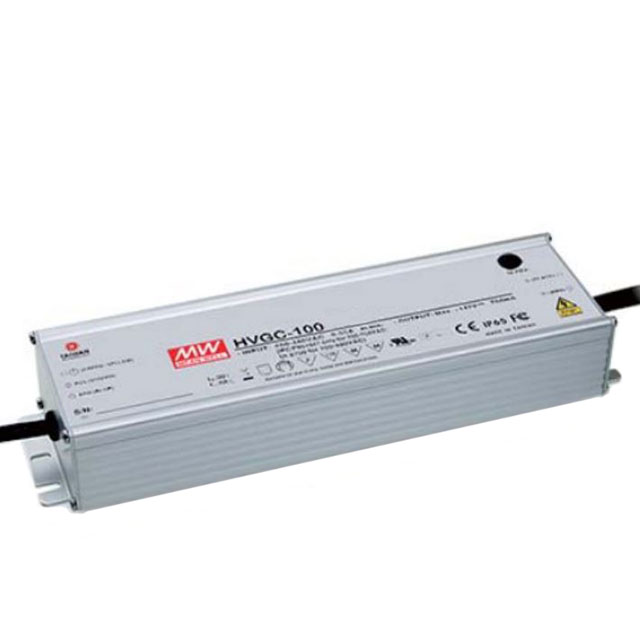

HVGC-100-350AB

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Features	Efficiency	Topology	Ratings	Voltage - Input (Max)	Voltage - Input (Min) [Min]	Mounting Type	Dimming	Current - Output (Max)	Approval Agency	Type	Termination Style	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. HVGC-100-350AB	1	OTP OVP SCP	91 %	AC DC Converter	IP67	528 VAC	180 VAC	Chassis Mount	Analog PWM	2.8 A	CB CE cURus EAC ENEC FCC RCM	Constant Current	Wire Leads	48.5 mm	11.42 in	1.91 in	290 mm	5.67 in	144 mm	UL 8750	90 °C	-40 °C	1.003 kW	3000 V
MEAN WELL USA Inc. HVGC-100-350A	1	OTP OVP SCP	91 %	AC DC Converter	IP65	528 VAC	180 VAC	Chassis Mount			CB CE cURus TUV	Constant Current	Wire Leads								90 °C	-40 °C	100 W	3750 V	350 mA	29 V	285 V
MEAN WELL USA Inc. HVGC-100-700B	1	OTP OVP SCP	91 %	AC DC Converter	IP67	528 VAC	180 VAC	Chassis Mount	Analog PWM		CB CE cURus TUV	Constant Current	Wire Leads								90 °C	-40 °C	99 W	3750 V	700 mA	15 V	142 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 75.16

General part information

2.8A Constant Current LED Driver AC DC Converter Topology 1 Output
