957224-2000-AR-TP

Active

3M (TC)

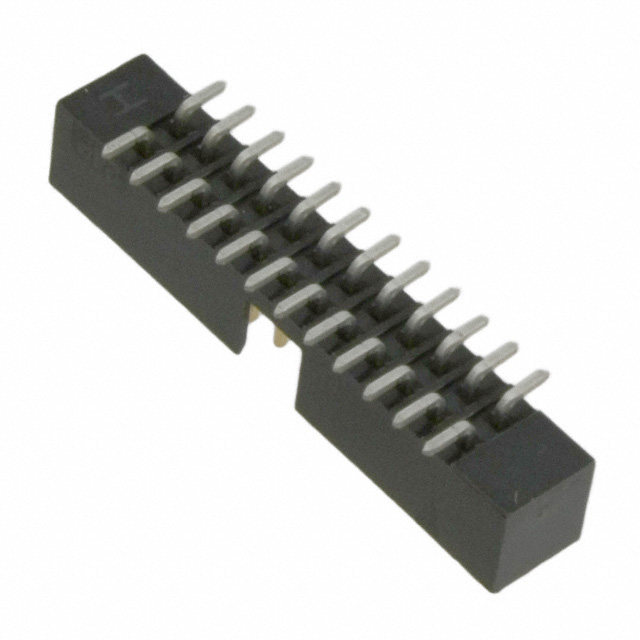

CONN HEADER SMD 24POS 2MM

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER SMD 24POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	957224-2000-AR-TP

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Number of Positions	Contact Shape	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Shrouding	Contact Material	Number of Rows	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish - Post	Material Flammability Rating	Termination	Contact Length - Post	Contact Length - Post
3M (TC) 957224-2000-AR-TP	Push-Pull	Gold	All	1 çm	39.4 çin	0.079 in	2 mm	Thermoplastic	24	Square	Black	5.6 mm	0.22 in	-40 °C	105 ░C	Flash	Surface Mount	Header	Shrouded - 4 Wall	Copper Alloy	2	Male Pin	0.079 in	2 mm	Keying Slot	Tin	UL94 V-0	Solder
3M (TC) 957224-6002-AR	Push-Pull	Gold	All	1 çm	39.4 çin	0.079 in	2 mm	Thermoplastic	24	Square	Black	5.6 mm	0.22 in	-40 °C	105 ░C	Flash	Through Hole	Header	Shrouded - 4 Wall	Copper Alloy	2	Male Pin	0.079 in	2 mm	Keying Slot	Tin	UL94 V-0	Solder	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 24 position 0.079" (2.00mm)
