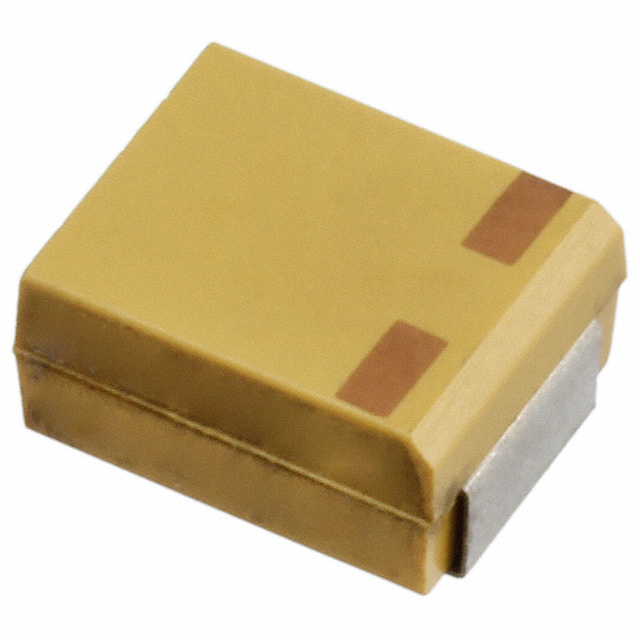

T495E108M006ATE050

Active

KEMET

CAP, TANTALUM, 1000UF, 6.3V, 2924 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T495E108M006ATE050

T495E108M006ATE050

Active

KEMET

CAP, TANTALUM, 1000UF, 6.3V, 2924 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet T495E108M006ATE050

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T495E108M006ATE050

Capacitance	1000 µF
ESR (Equivalent Series Resistance)	50 mOhms
Features	General Purpose
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	E
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7360 Metric
Package / Case	2924
Size / Dimension [x]	7.3 mm
Size / Dimension [x]	0.287 in
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

T495E Series

Part	Manufacturer Size Code	Features	ESR (Equivalent Series Resistance)	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Voltage - Rated	Lifetime @ Temp.	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Ratings	Grade	Qualification
KEMET T495E107K020ATE100	E	General Purpose	100 mOhms	100 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	20 V	2000 Hrs	2824	-55 °C	125 °C	Molded
KEMET T495E477K010ATE100	E	General Purpose	100 mOhms	470 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	10 V	2000 Hrs	2824	-55 °C	125 °C	Molded
KEMET T495E108M006ATE050	E	General Purpose	50 mOhms	1000 µF	0.236 in	7.3 mm	0.287 in	6 mm	20 %	Surface Mount	6.3 V	2000 Hrs	2924	-55 °C	125 °C	Molded	7360 Metric
KEMET T495E227K016ATE050	E	General Purpose	50 mOhms	220 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	16 V	2000 Hrs	2824	-55 °C	125 °C	Molded
KEMET T495E337K010ATE060	E	General Purpose	60 mOhms	330 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	10 V	2000 Hrs	2824	-55 °C	125 °C	Molded
KEMET T495E157K020ATE080	E	General Purpose	80 mOhm	150 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	20 V	2000 Hrs	2824	-55 °C	125 °C	Molded
KEMET T495E108M006ATE040	E	General Purpose	40 mOhm	1000 µF	0.236 in	7.3 mm	0.287 in	6 mm	20 %	Surface Mount	6.3 V	2000 Hrs	2924	-55 °C	125 °C	Molded	7360 Metric
KEMET T495E107K025AHE100	E	Automotive	100 mOhm	100 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	25 VDC	2000 Hrs	2924	-55 °C	125 °C	Molded	7361 Metric	AEC-Q200	Automotive	AEC-Q200
KEMET T495E227K016ATE100	E	General Purpose	100 mOhms	220 µF	0.236 in	7.3 mm	0.287 in	6 mm	10 %	Surface Mount	16 V	2000 Hrs	2824	-55 °C	125 °C	Molded
KEMET T495E227M016ATE075	E	General Purpose	75 mOhm	220 µF	0.236 in	7.3 mm	0.287 in	6 mm	20 %	Surface Mount	16 V	2000 Hrs	2924	-55 °C	125 °C	Molded	7360 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.86
		10	$ 5.95
		50	$ 5.34
		100	$ 4.64
	Digi-Reel®	1	$ 6.86
		10	$ 5.95
		50	$ 5.34
		100	$ 4.64
	Tape & Reel (TR)	500	$ 4.19
		1000	$ 3.89
		2500	$ 3.81
Newark	Each (Supplied on Full Reel)	1	$ 5.66
		2	$ 5.52
		4	$ 5.37
		6	$ 5.03

Description

General part information

T495E Series

1000 µF Molded Tantalum Capacitors 6.3 V 2924 (7360 Metric) 50mOhm
