8530 0041000

Active

Belden Inc.

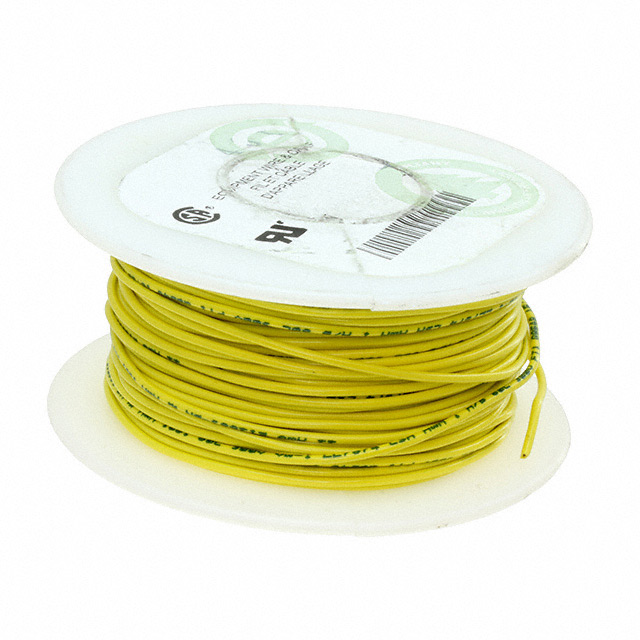

HOOK-UP SOLID 22AWG YELLOW

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP SOLID 22AWG YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	8530 0041000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Chemical Resistant
Jacket (Insulation) Diameter [diameter]	0.059 in
Jacket (Insulation) Diameter [diameter]	1.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.017 in
Jacket (Insulation) Thickness	0.43 mm
Jacket Color	Yellow
Length	1000 ft
Length	304.8 m
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	22 AWG

Part	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Qualification	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length	Length	Jacket (Insulation) Material	Jacket Color	Length [x]	Length [x]
Belden Inc. 8530 0091000	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)
Belden Inc. 8530 0101000	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Black
Belden Inc. 8530 005100	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant			Poly-Vinyl Chloride (PVC)	Green	30.5 m	100 ft
Belden Inc. 8530 0031000	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Orange
Belden Inc. 8530 0041000	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Yellow
Belden Inc. 8530 0061000	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Blue
Belden Inc. 8530 003100	Solid	0.017 in	0.43 mm	Hook-Up	1000 V	MIL-W-76C Type MW	22 AWG	Copper Tinned	0.059 in	1.5 mm	Chemical Resistant			Poly-Vinyl Chloride (PVC)	Orange	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.62

General part information

22 AWG Hook-Up Wire Solid Yellow 1000V 1000.0' (304.8m)
