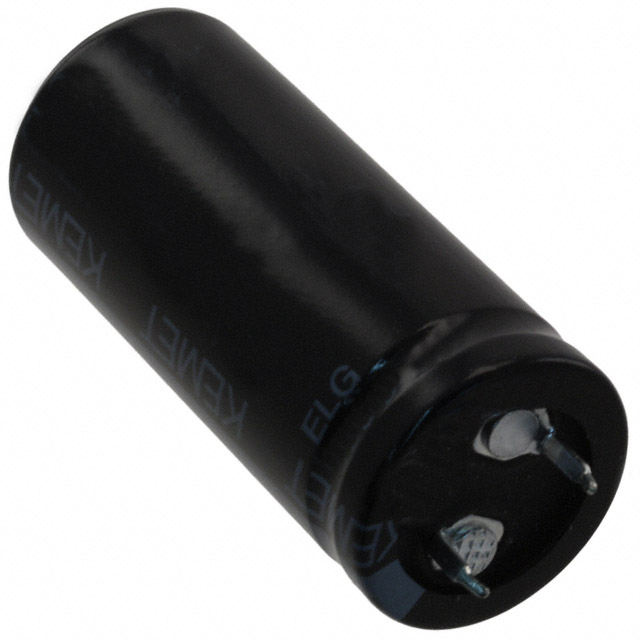

ELG687M200AQ6AA

Active

KEMET

CAP ALUM 680UF 20% 200V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 680UF 20% 200V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELG687M200AQ6AA

Applications	General Purpose
Capacitance	680 µF
ESR (Equivalent Series Resistance)	121 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	2.625 A
Ripple Current @ Low Frequency	1.75 A
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Tolerance	20 %
Voltage - Rated	200 V

Part	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Ripple Current @ Low Frequency	Polarization	Package / Case	Lead Spacing	Lead Spacing	Applications	Voltage - Rated	Tolerance	Mounting Type
KEMET ELG687M200AQ6AA	2.625 A	2.047 in	52 mm	22 mm	0.866 in	121 mOhm	2000 Hrs	-25 °C	105 ░C	680 µF	1.75 A	Polar	Radial Can - Snap-In	0.394 in	10 mm	General Purpose	200 V	20 %	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 121mOhm @ 20kHz 2000 Hrs @ 105°C
