VJD2S00B-00000-000

Active

Carling Technologies

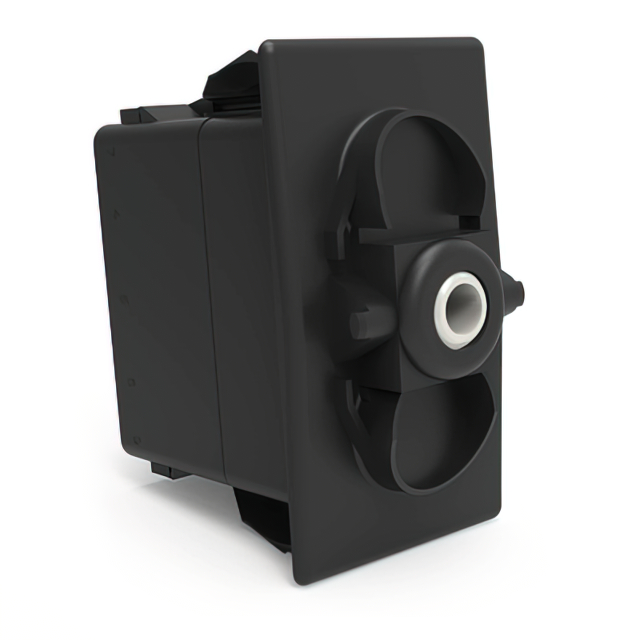

SWITCH ROCKER DPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VJD2S00B-00000-000	VJD2S00B Series

Actuator Marking	Varies by Cap	No Marking, Varies by Cap
Actuator Type	Actuator Arm, Cap Required	Convex (Reverse V), Actuator Arm, Cap Required
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER DPDT 20A 12V

Part	Voltage Rating - DC	Electrical Life	Mounting Type	Termination Style	Circuit	Mechanical Life	Switch Function	Actuator Marking	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Ingress Protection	Color - Actuator/Cap	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Carling Technologies VJD2S00B-AZB00-000	12 V	100000 Cycles	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	DPDT	100000 Cycles	On-Off-On	No Marking	CSA, UL, VDE	85 °C	-40 °C	Convex (Reverse V)	IP66/IP68	Black	20 A	21.08 mm	36.83 mm
Carling Technologies VJD2S00B-AZC00-000	12 V	100000 Cycles	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	DPDT	100000 Cycles	On-Off-On	No Marking	CSA, UL, VDE	85 °C	-40 °C	Convex (Reverse V)	IP66/IP68	Black	20 A	21.08 mm	36.83 mm
Carling Technologies VJD2S00B-00000-000	12 V	100000 Cycles	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	DPDT	100000 Cycles	On-Off-On	Varies by Cap	CSA, UL, VDE	85 °C	-40 °C	Actuator Arm, Cap Required	IP66/IP68		20 A	21.08 mm	36.83 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In
