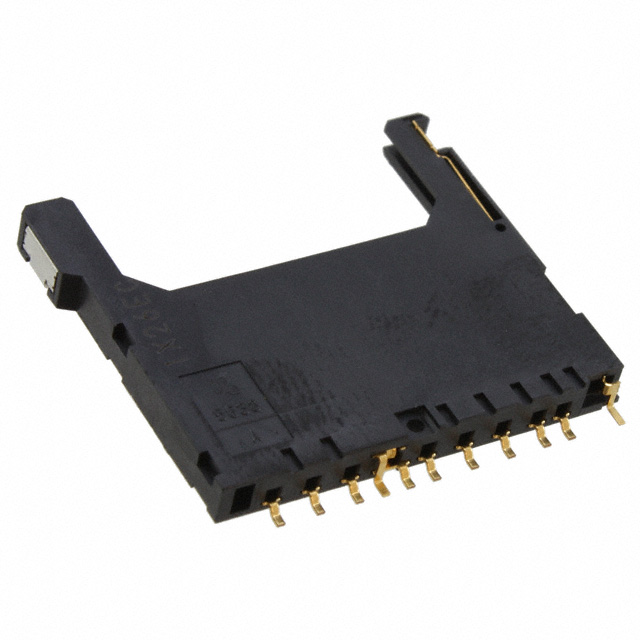

145638009211859+

Obsolete

KYOCERA AVX

MEMORY CARD / TAPE/REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

KYOCERA AVX

MEMORY CARD / TAPE/REEL ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle

Technical documentation and resources

No documents available

Specification	145638009211859+	145638 Series

Card Type	Secure Digital - SD	Secure Digital - SD
Connector Type	-	Connector and Ejector
Contact Finish	-	Gold
Contact Finish Thickness	-	0.51 µm
Contact Finish Thickness	-	20 µin
Features	Card Guide, Switch, Board Guide	Card Guide, Switch, Board Guide
Height Above Board [z]	2.9 mm	2.9 mm
Height Above Board [z]	0.114 "	0.114 "
Insertion, Removal Method	Pull Out, Push In	Push Out, Push In, Pull Out
Mounting Feature	Normal, Standard - Top	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle

Part	Insertion, Removal Method	Mounting Feature	Features	Height Above Board [z]	Height Above Board [z]	Connector Type	Mounting Type	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
KYOCERA AVX 145638009511859+	Push In, Push Out	Normal, Standard - Top	Board Guide, Card Guide, Switch	2.9 mm	0.114 "	Connector and Ejector	Surface Mount, Right Angle	Secure Digital - SD
KYOCERA AVX 145638009511862	Push In, Push Out	Normal, Standard - Top	Board Guide, Card Guide, Switch	2.9 mm	0.114 "	Connector and Ejector	Surface Mount, Right Angle	Secure Digital - SD	Gold	0.51 µm	20 µin
KYOCERA AVX 145638009211859+	Pull Out, Push In	Normal, Standard - Top	Board Guide, Card Guide, Switch	2.9 mm	0.114 "		Surface Mount, Right Angle	Secure Digital - SD
