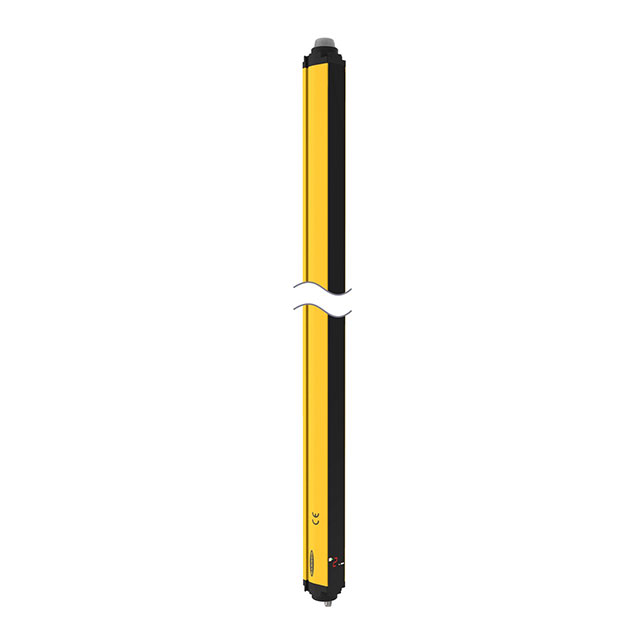

SGSSA3-400Q8

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	SGSSA3-400Q8

Beam Pitch	400 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	3
Operating Range [Max]	8 m
Operating Range [Min]	0.5 m
Protective Height [z]	800 mm
Voltage - Supply	24 VDC

Part	Operating Range [Max]	Operating Range [Min]	Voltage - Supply	Beam Pitch	Protective Height [z]	Number of Beams	Ingress Protection
BANNER ENGINEERING SGSSA3-400Q8	8 m	0.5 m	24 VDC	400 mm	800 mm	3	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 920.00
Newark	Each	1	$ 936.00

General part information

Light Curtain
