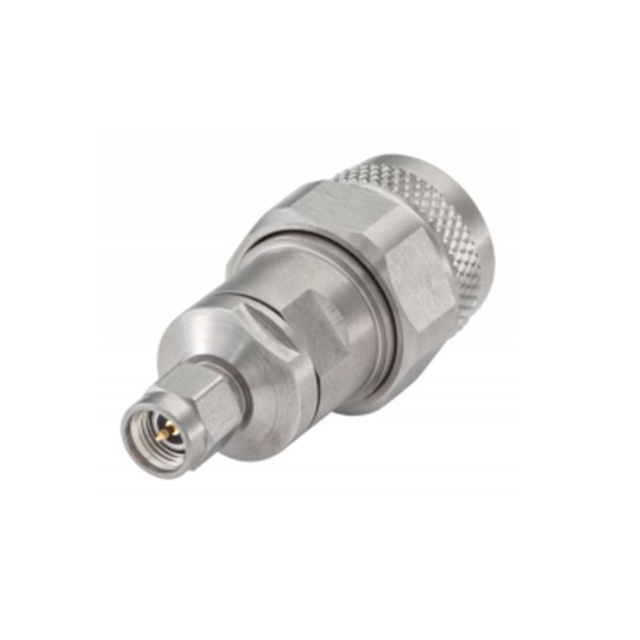

Specification	03S105-S00S3

Adapter Series	RPC-3.50 to RPC-N
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Between Series
Convert From (Adapter End) Plug Size	3.5 mm
Convert From (Adapter End) Type	Male Pin
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	N Plug
Dielectric Material	Polyphenylene Ether (PPE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Style	Straight

03S105 Series

Part	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Material	Impedance	Convert From (Adapter End) Plug Size	Convert From (Adapter End) Type	Fastening Type	Adapter Type	Center Contact Plating	Mounting Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Frequency - Max	Style	Center Gender	Adapter Series	Conversion Type
Rosenberger 03S105-S00S3	Beryllium Copper	-40 °C	85 °C	Polyphenylene Ether (PPE)	Stainless Steel	50 Ohm	3.5 mm	Male Pin	Threaded	Plug to Plug	Gold	Free Hanging (In-Line)	N Plug	Male Pin	18 GHz	Straight	Male	RPC-3.50 to RPC-N	Between Series
