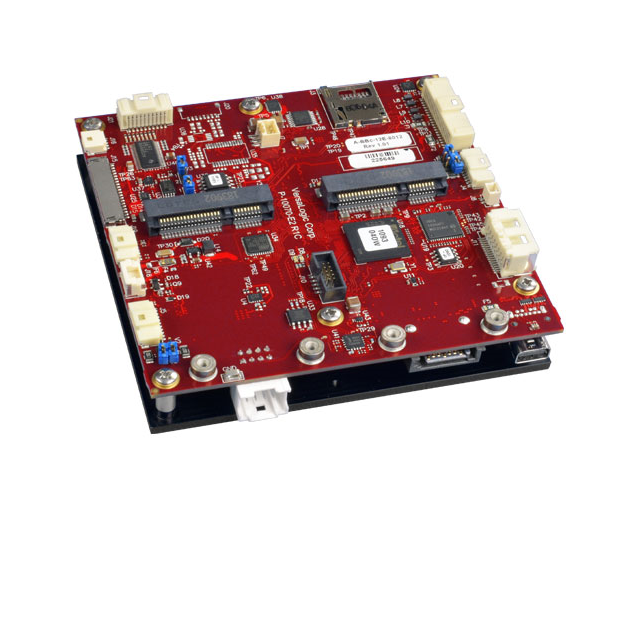

VL-EPU-4012-EAP-02X-08

Active

VersaLogic Corporation

SBC 1.3GHZ 2 CORE 2GB/8GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VL-EPU-4012-EAP-02X-08

Active

VersaLogic Corporation

SBC 1.3GHZ 2 CORE 2GB/8GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VL-EPU-4012-EAP-02X-08	1241 Series

Analog Input:Output	-	8
Analog Input:Output	-	0
Analog Input:Output	-	8
Analog Input:Output	-	4
Cooling Type	Heat Plate	Heat Sink, Heat Plate, Fan, Fan + Heat Sink
Core Processor	Intel Atom E3930	VIA Eden, Intel Atom E680T, Intel Atom Z520PT, Intel Core i7, Intel Pentium M 745, Intel Atom E3825, Intel Atom E3930, Vortex86DX2, Intel Core 2 Duo SP9300, i.MX6Quad, ARM Cortex-A9, Intel Core i3
Digital I/O Lines	8	4 - 32
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	2 - 1000 Mbps
Ethernet	-	GbE, GbE (2)
Expansion Site/Bus	microSD, SATA, I2C, mPCIe	PC/104-Plus, microSD, CANbus, SMBus, SATA, PCIe, SUMIT, PC/104, SPX, SPI/SPX, I2C, mPCIe, SPI, PCI-104, UART, eMMC, GPIO
Form Factor	COM Compact	EBX, COM Express mini (Type 10), PC/104, COM Basic, COM Compact, EPU, COM Mini
Number of Cores	2	1 - 4
Operating Temperature [Max]	85 °C	60 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Power (Watts)	8.1 W	2.8 - 25 W
RAM Capacity/Installed	2 GB	0 - 16 GB
RAM Capacity/Installed	-	1GB/1GB
RAM Capacity/Installed	-	8 GB
RAM Capacity/Installed	-	0 GB
RS-232 (422, 485)	4	1 - 4
Size / Dimension	-	94.99 mm
Size / Dimension	-	124.97 mm
Size / Dimension [x]	3.74 "	2.17 - 5.75 in
Size / Dimension [x]	94.99 mm	3.74 - 146.05 mm
Size / Dimension [y]	3.74 "	3.31 - 8 in
Size / Dimension [y]	94.99 mm	4.92 - 203.2 mm
Speed	1.3 GHz	1.2 - 800 GHz
Speed	1.8 GHz	1.8 GHz
Storage Interface	eMMC, SATA 3.0, microSD, mSATA	SATA (2), ATA100, SATA 2.0 (2), microSD, IDE DOM, SATA 3.0 (2), mSATA, CompactFlash, ATA-4, SATA2 (2), eUSB, MiniBlade, SATA 2.0, eMMC, SATA 3.0, mPCIe/mSATA, SATA, microSD (2), SATA2
USB	USB 3.0, USB 2.0 (4)	USB 2.0 (6), USB 2.0 (7), USB 2.0 (2), USB 2.0 (3), USB 2.0 (4), USB 3.0 (2), USB 3.0, USB 2.0 (5)
Video Outputs	DP, LVDS	LVDS, DVI, VGA, DP (2), LVDS (2), DP, HDMI
Watchdog Timer	True	True

1241 Series

SBC 1.2GHZ 1 CORE 1GB/0GB RAM

Part	Form Factor	USB	Power (Watts)	Speed	Ethernet	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores	Video Outputs	Expansion Site/Bus	Analog Input:Output [custom]	Analog Input:Output [custom]	RS-232 (422, 485)	Core Processor	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	RAM Capacity/Installed	Digital I/O Lines	Storage Interface	Cooling Type	RAM Capacity/Installed	Ethernet	Analog Input:Output [x]	Analog Input:Output [y]	Size / Dimension [x]	Size / Dimension [y]	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Speed
VersaLogic Corporation VL-EBX-22G	EBX	USB 2.0 (6)	10 W	1.2 GHz	2, 10 Mbps, 100 Mbps	60 °C	0 °C	1	DVI, LVDS, VGA	PC/104-Plus	8	0	4	VIA Eden	203.2 mm	146.05 mm	8 in	5.75 in	0 GB, 1 GB	32	ATA100, SATA (2)
VersaLogic Corporation VL-COMM-26ECK	COM Express mini (Type 10)	USB 2.0 (7)	8.4 W	1.6 GHz	10 Mbps, 100 Mbps, 1000 Mbps	85 °C	-40 °C	1	DVI, LVDS, VGA	CANbus, microSD, PCIe, SATA, SMBus				Intel Atom E680T	84 mm	55 mm	3.31 "	2.17 "			microSD, SATA 2.0 (2)	Heat Sink	1GB/1GB
VersaLogic Corporation VL-EPMS-21B	PC/104	USB 2.0 (2), USB 2.0 (3)	6.5 W		10 Mbps, 100 Mbps, 1000 Mbps	85 °C	-40 °C	1	LVDS	PC/104, SPX, SUMIT			4	Intel Atom Z520PT	96.52 mm	91.44 mm	3.8 "	3.6 in	0 GB, 2 GB		ATA100, IDE DOM	Heat Sink		GbE
VersaLogic Corporation VL-EPU-4562-SCP-16	COM Basic	USB 2.0 (4), USB 3.0 (2)	21.6 W	2.8 GHz	10 Mbps, 100 Mbps, 1000 Mbps	60 °C	0 °C	4	DP (2), LVDS	I2C, mPCIe, PCIe, SATA, SPI/SPX			4	Intel Core i7	4.92 in	3.74 in			16 GB	24	mSATA, SATA 3.0 (2)	Heat Plate			8	4	94.99 mm	124.97 mm
VersaLogic Corporation VL-EBX-12PR	EBX	USB 2.0 (4)	25 W	1.8 GHz	2, 10 Mbps, 100 Mbps	60 °C	0 °C	1	LVDS, VGA	PC/104-Plus	8	0	4	Intel Pentium M 745	203.2 mm	146.05 mm	8 in	5.75 in	0 GB, 2 GB	32	ATA-4, ATA100, CompactFlash, SATA2 (2)	Fan
VersaLogic Corporation VL-EBX-37A	EBX	USB 2.0 (6)	18.5 W	2.26 GHz		60 °C	0 °C	2	LVDS (2), VGA	PC/104-Plus			4		203.2 mm	146.05 mm	8 in	5.75 in		32	eUSB, MiniBlade, SATA2 (2)	Fan + Heat Sink		GbE (2)	8	4			8 GB	0 GB
VersaLogic Corporation VL-EPM-39EBK	PC/104	USB 2.0 (4)	5.3 W		10 Mbps, 100 Mbps, 1000 Mbps	85 °C	-40 °C	2	DP	I2C, mPCIe, PC/104-Plus, SATA			2	Intel Atom E3825	95.75 mm	107.44 mm	3.77 in	4.23 "		8	mSATA, SATA 2.0	Heat Sink							8 GB	0 GB
VersaLogic Corporation VL-EPU-4012-EAP-02X-08	COM Compact	USB 2.0 (4), USB 3.0	8.1 W	1.3 GHz	10 Mbps, 100 Mbps, 1000 Mbps	85 °C	-40 °C	2	DP, LVDS	I2C, microSD, mPCIe, SATA			4	Intel Atom E3930	94.99 mm	94.99 mm	3.74 "	3.74 "	2 GB	8	eMMC, microSD, mSATA, SATA 3.0	Heat Plate									1.8 GHz
VersaLogic Corporation VL-EBX-18ECK	EBX	USB 2.0 (5)	6.3 W	800 MHz	2, 10 Mbps, 100 Mbps	85 °C	-40 °C	1	LVDS, VGA	microSD, mPCIe, PC/104-Plus, SATA, SPI			4	Vortex86DX2	203.2 mm	146.05 mm	8 in	5.75 in	2 GB	32	microSD, mPCIe/mSATA, SATA	Heat Sink
VersaLogic Corporation VL-EPMP-34ER	PC/104	USB 2.0 (4)	12.8 W	1.2 GHz	10 Mbps, 100 Mbps, 1000 Mbps	85 °C	-40 °C	2	LVDS, VGA	PCI-104, SATA, SPX			1	Intel Core 2 Duo SP9300	96.52 mm	106.68 mm	3.8 "	4.2 "	0 GB, 4 GB		MiniBlade, SATA 2.0 (2)	Fan + Heat Sink

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1065.00

Description

General part information

1241 Series

Single Board Computer 1.3GHz, 1.8GHz 2 Core 2GB/2GB RAM Intel Atom E3930
