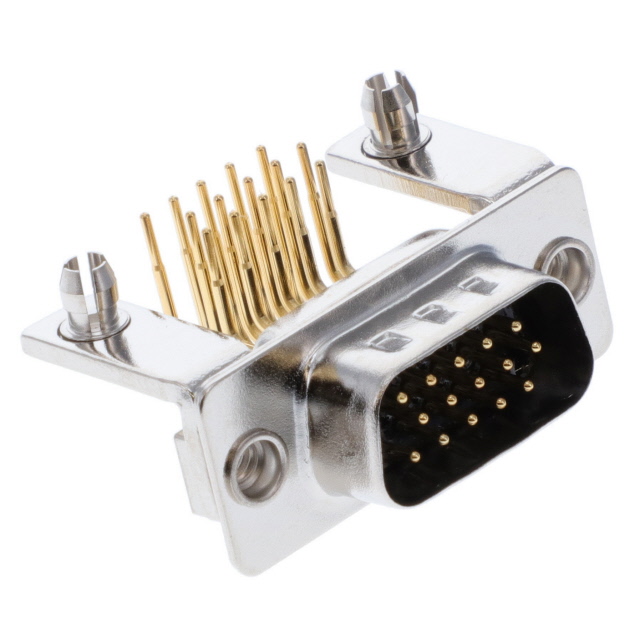

781-M15-113R141
ActiveD SUB CONNECTOR, HD15, IP68, HIGH DENSITY, PLUG, SEAL-D 781-M SERIES, 15 CONTACTS, DE, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
781-M15-113R141
ActiveD SUB CONNECTOR, HD15, IP68, HIGH DENSITY, PLUG, SEAL-D 781-M SERIES, 15 CONTACTS, DE, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 781-M15-113R141 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
781-M15 Series
The Seal-D 781-M series 0.35-inch foot-print right angle HD male D-sub Connectors. with gold flash plated, machined brass contacts with a PA6T insulator and steel with nickel plating shell. Unique sealing methods maintains STD D-sub profile allowing drop in replacement of current D-sub connectors.
