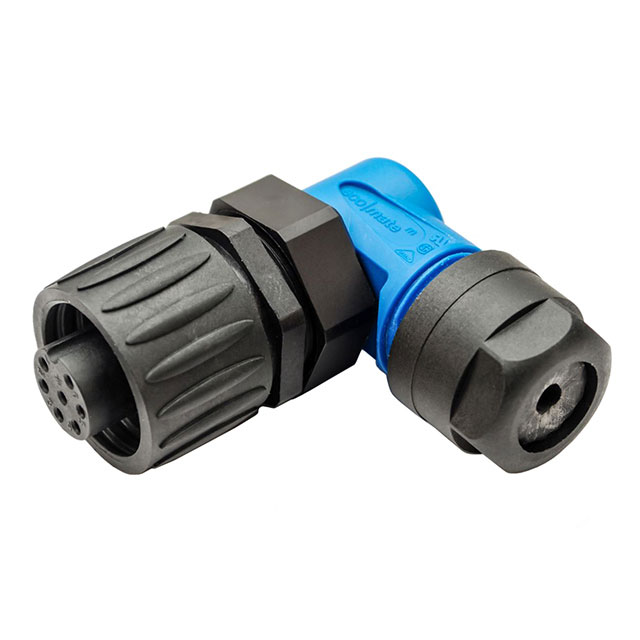

C016 10F006 000 10

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 7POS R/A

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 7POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	C016 10F006 000 10

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black, Blue
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Type	For Female Sockets

CONN PLUG HSNG FMALE 7POS R/A

Part	Orientation	Ingress Protection	Shielding	Features	Note	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Material Flammability Rating	Contact Type	Type	Housing Color	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Shell Material	Mounting Type	Contact Shape
Amphenol Tuchel Industrial C016 10F006 000 10	Keyed	IP65, IP67	Unshielded	Backshell, Coupling Nut	Contacts Not Included	125 °C	-40 °C	1.6 mm	UL94 V-0	Crimp	For Female Sockets	Black, Blue	1	6	Plug Housing	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line), Right Angle	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 12.73

General part information

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
