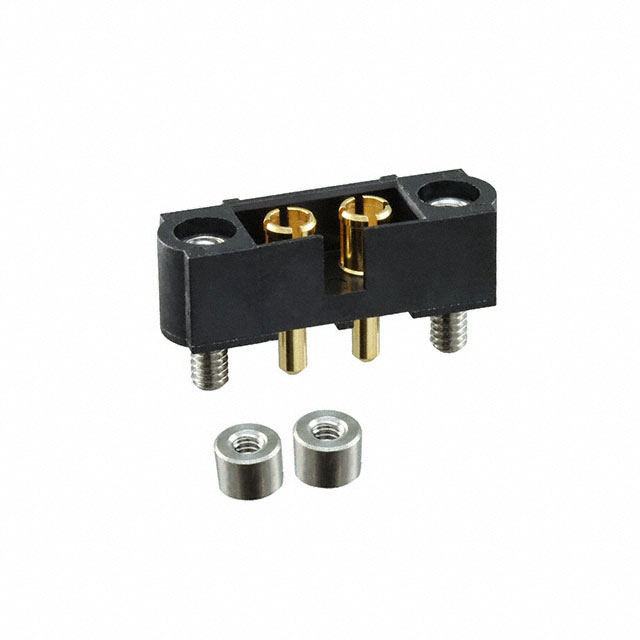

M80-5000000M2-02-331-00-000
ActiveHarwin Inc.
BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, M2, BLACK INSULATOR, RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
M80-5000000M2-02-331-00-000
ActiveHarwin Inc.
BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, M2, BLACK INSULATOR, RECEPTACLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5000000M2-02-331-00-000 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Power |
| Current Rating (Amps) | 20 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 9.75 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-5000000M2 Series
| Part | Contact Finish - Mating | Contact Type | Current Rating (Amps) | Shrouding | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mated Stacking Heights | Mounting Type | Contact Shape | Features | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Material | Voltage Rating | Style | Number of Positions | Insulation Material | Number of Rows | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Number of Positions Loaded | Connector Type | Insulation Height | Insulation Height | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Gold | Male Pin Power | 20 A | Shrouded - 4 Wall | Black | 10 çin | 0.25 çm | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 10 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Harwin Inc. | Gold | Male Pin Power | 40 A | Shrouded - 4 Wall | Black | 30 Áin | 0.76 Ám | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 6 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Harwin Inc. | Gold | Male Pin Power | 40 A | Shrouded - 4 Wall | Black | 30 Áin | 0.76 Ám | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 2 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Harwin Inc. | Gold | Male Pin Power | 20 A | Shrouded - 4 Wall | Black | 10 çin | 0.25 çm | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 2 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Harwin Inc. | Gold | Male Pin Power | 40 A | Shrouded - 4 Wall | Black | 30 Áin | 0.76 Ám | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 8 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Harwin Inc. | Gold | Male Pin Power | 40 A | Shrouded - 4 Wall | Black | 30 Áin | 0.76 Ám | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 10 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Harwin Inc. | Gold | Male Pin Power | 20 A | Shrouded - 4 Wall | Black | 10 çin | 0.25 çm | 7.3 mm 9.75 mm | Through Hole | Circular | Keying Slot Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | 0.157 " | 4 mm | Copper Alloy | 800 V | Board to Cable/Wire | 8 | Polyphenylene Sulfide (PPS) Glass Filled | 1 | 3.5 mm | 0.138 in | UL94 V-0 | All | Header | 5.6 mm | 0.22 in | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.39 | |
| 14 | $ 18.73 | |||
| 112 | $ 16.77 | |||
| 504 | $ 15.38 | |||
Description
General part information
M80-5000000M2 Series
Connector Header Through Hole 2 position 0.157" (4.00mm)
