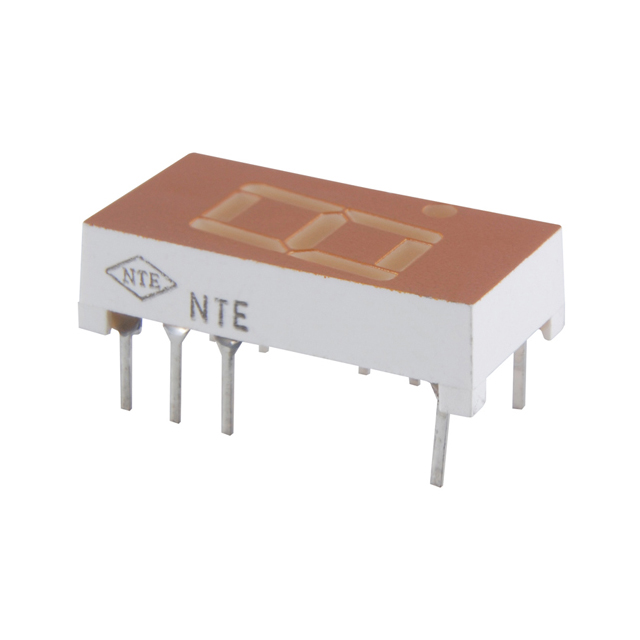

NTE3071

Active

NTE Electronics, Inc

LED-DISPLAY-ORANGE

Search across all available documentation for this part.

Active

NTE Electronics, Inc

LED-DISPLAY-ORANGE

Technical Specifications

Parameters and characteristics for this part

Part	Common Pin	Number of Characters [custom]	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Display Type	Current - Test	Millicandela Rating	Color	Digit/Alpha Size [custom]
NTE Electronics, Inc NTE3078	Common Anode	1	0.6 in	15.24 mm	10-DIP	100 mW	1.85 V	12.19 mm	0.75 in	19.05 mm	0.48 in	9.27 mm	0.365 in	0.56 in	14.22 mm	644 nm	7-Segment	20 mA	18 mcd	Red
NTE Electronics, Inc NTE3071	Common Cathode	1				75 mw	2.1 V							10.16 mm		605 nm	7-Segment	20 mA	2.2 mcd	Amber	0.4 in
NTE Electronics, Inc NTE3079	Common Cathode	1	0.6 in	15.24 mm	10-DIP	100 mW	1.85 V	12.19 mm	0.75 in	19.05 mm	0.48 in	9.27 mm	0.365 in	0.56 in	14.22 mm	644 nm	7-Segment	20 mA	12 mcd	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Display Modules - LED Character and Numeric Amber 7-Segment 1 Character Common Cathode 2.1V 20mA

Technical documentation and resources

No documents available
