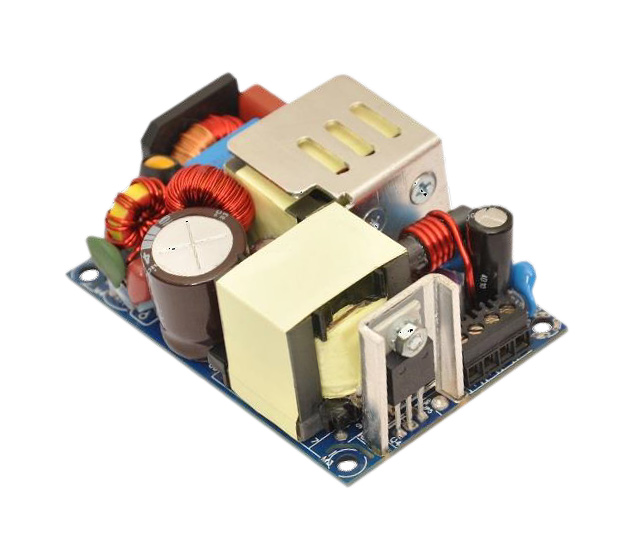

MBC120-1T12L

Active

Bel Power Solutions

AC/DC CONVERTER 12V 100/120W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 100/120W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 24V 100W

Part	Power (Watts)	Number of Outputs	Current - Output 1	Mounting Type	Type	Approval Agency	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Efficiency	Applications
Bel Power Solutions MBC120-1024L	100 W, 120 W	1	5 A	Chassis Mount	Open Frame	CE	4000 V	30.1 mm	2 in	1.18 in	3 "	76.2 mm	50.8 mm	24 V	91 %	Medical
Bel Power Solutions MBC120-1T58L	100 W, 120 W	1		Chassis Mount	Open Frame	CE	4000 V	30.1 mm	2 in	1.18 in	3 "	76.2 mm	50.8 mm		93 %	Medical
Bel Power Solutions MBC120-1T12L	100 W, 120 W	1	8.33 A	Chassis Mount	Open Frame	CE	4000 V	30.1 mm	2 in	1.18 in	3 "	76.2 mm	50.8 mm	12 V	90 %	Medical
Bel Power Solutions MBC120-1T48L	100 W, 120 W	1	2.08 A	Chassis Mount	Open Frame	CE	4000 V	30.1 mm	2 in	1.18 in	3 "	76.2 mm	50.8 mm	48 V	93 %	Medical
Bel Power Solutions MBC120-1T30L	100 W, 120 W	1	3.33 A	Chassis Mount	Open Frame	CE	4000 V	30.1 mm	2 in	1.18 in	3 "	76.2 mm	50.8 mm	30 V	91 %	Medical
Bel Power Solutions MBC120-1024L-2	100 W, 120 W	1	5 A	Chassis Mount	Open Frame	CE	4000 V	30.1 mm	2 in	1.18 in	3 "	76.2 mm	50.8 mm	24 V	91 %	Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
