214-99-632-01-670800

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 32POS TINLEAD

Deep-Dive with AI

Search across all available documentation for this part.

214-99-632-01-670800

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 32POS TINLEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	214-99-632-01-670800

Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Surface Mount
Number of Positions or Pins (Grid) [custom]	2 x 16
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	1.42 mm
Termination Post Length	0.056 in
Type	DIP
Type	0.6 in
Type	15.24 mm

214-99 Series

Part	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Features	Contact Finish - Mating	Contact Finish - Post	Type	Type	Type	Contact Material - Mating	Current Rating (Amps)	Mounting Type	Contact Material - Post	Material Flammability Rating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 214-99-306-01-670799	Polyamide (PA46) Nylon 4/6	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in	2	6	3	Closed Frame	Tin-Lead	Tin-Lead	0.3 "	7.62 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy	UL94 V-0
Mill-Max Manufacturing Corp. 214-99-318-01-670800	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in				Closed Frame	Tin-Lead	Tin-Lead	0.3 "	7.62 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy		18
Mill-Max Manufacturing Corp. 214-99-624-01-670800	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in				Closed Frame	Tin-Lead	Tin-Lead	0.6 in	15.24 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy		24
Mill-Max Manufacturing Corp. 214-99-320-01-670800	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in				Closed Frame	Tin-Lead	Tin-Lead	0.3 "	7.62 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy		20
Mill-Max Manufacturing Corp. 214-99-320-01-670799	Polyamide (PA46) Nylon 4/6	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in				Closed Frame	Tin-Lead	Tin-Lead	0.3 "	7.62 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy	UL94 V-0	20
Mill-Max Manufacturing Corp. 214-99-632-01-670800	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in				Closed Frame	Tin-Lead	Tin-Lead	0.6 in	15.24 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy			2 x 16	32
Mill-Max Manufacturing Corp. 214-99-640-01-670800	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	2.54 çm	100 çin	0.1 in	2.54 mm	-55 °C	125 °C	Solder	2.54 mm	0.1 in	1.42 mm	0.056 in	2		20	Closed Frame	Tin-Lead	Tin-Lead	0.6 in	15.24 mm	DIP	Beryllium Copper	3 A	Surface Mount	Brass Alloy		40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.55
		12	$ 3.41
		36	$ 3.01
		60	$ 2.84
		108	$ 2.67
		252	$ 2.44
		504	$ 2.27
		1008	$ 2.12
		2508	$ 1.94

Description

General part information

214-99 Series

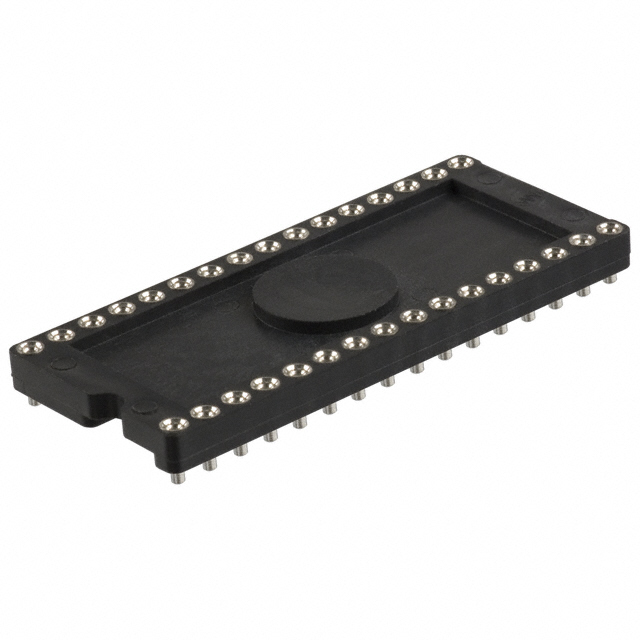

32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin-Lead Surface Mount
